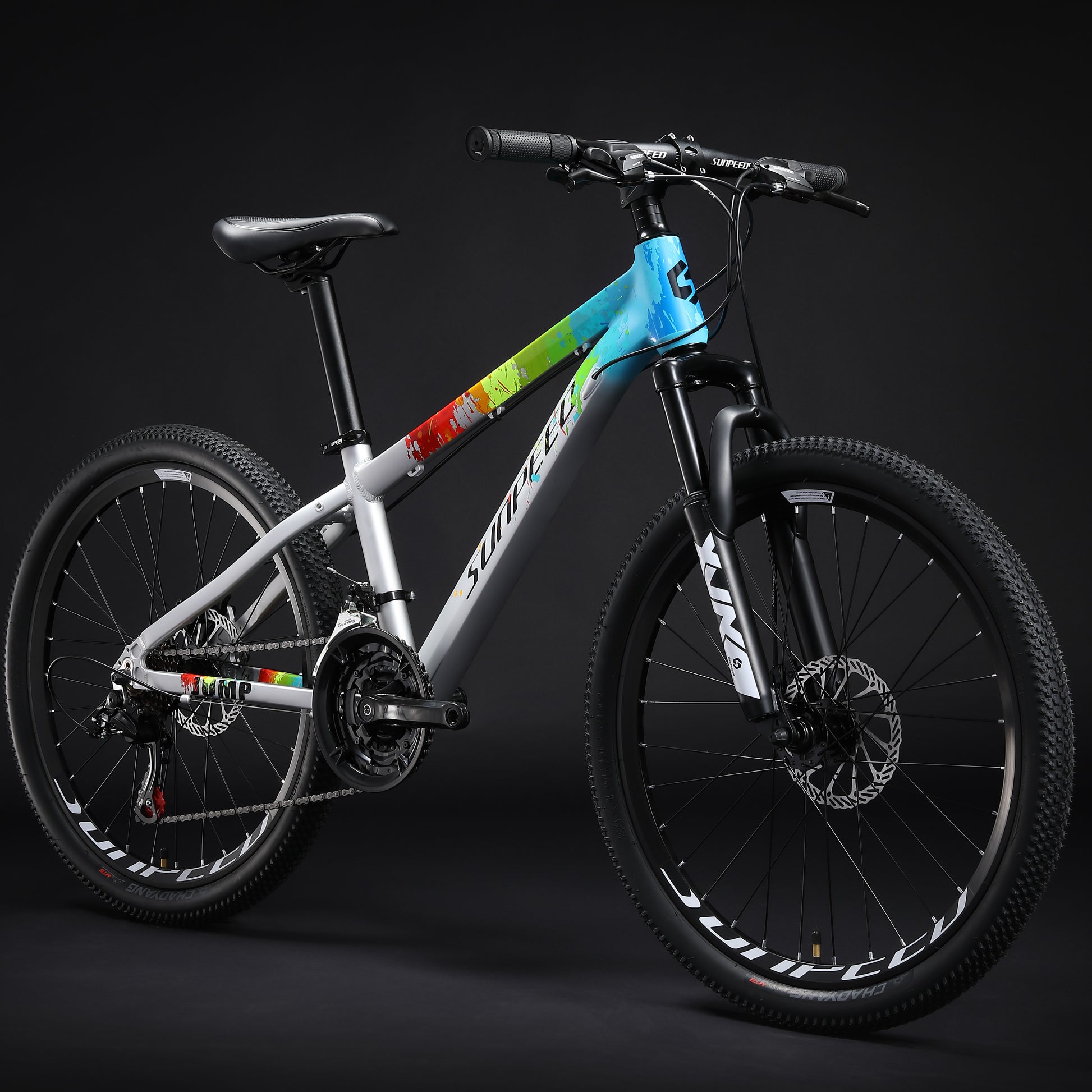

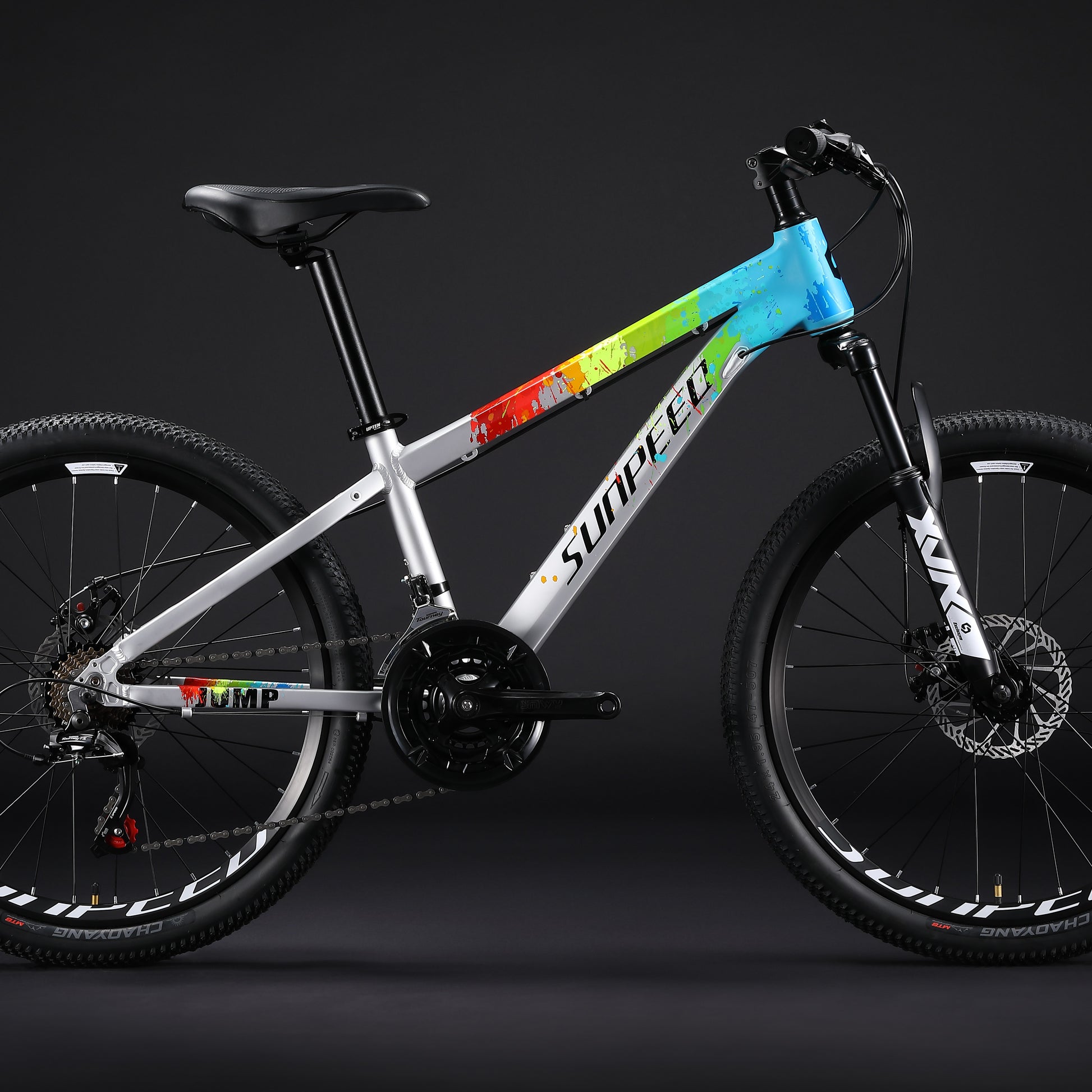

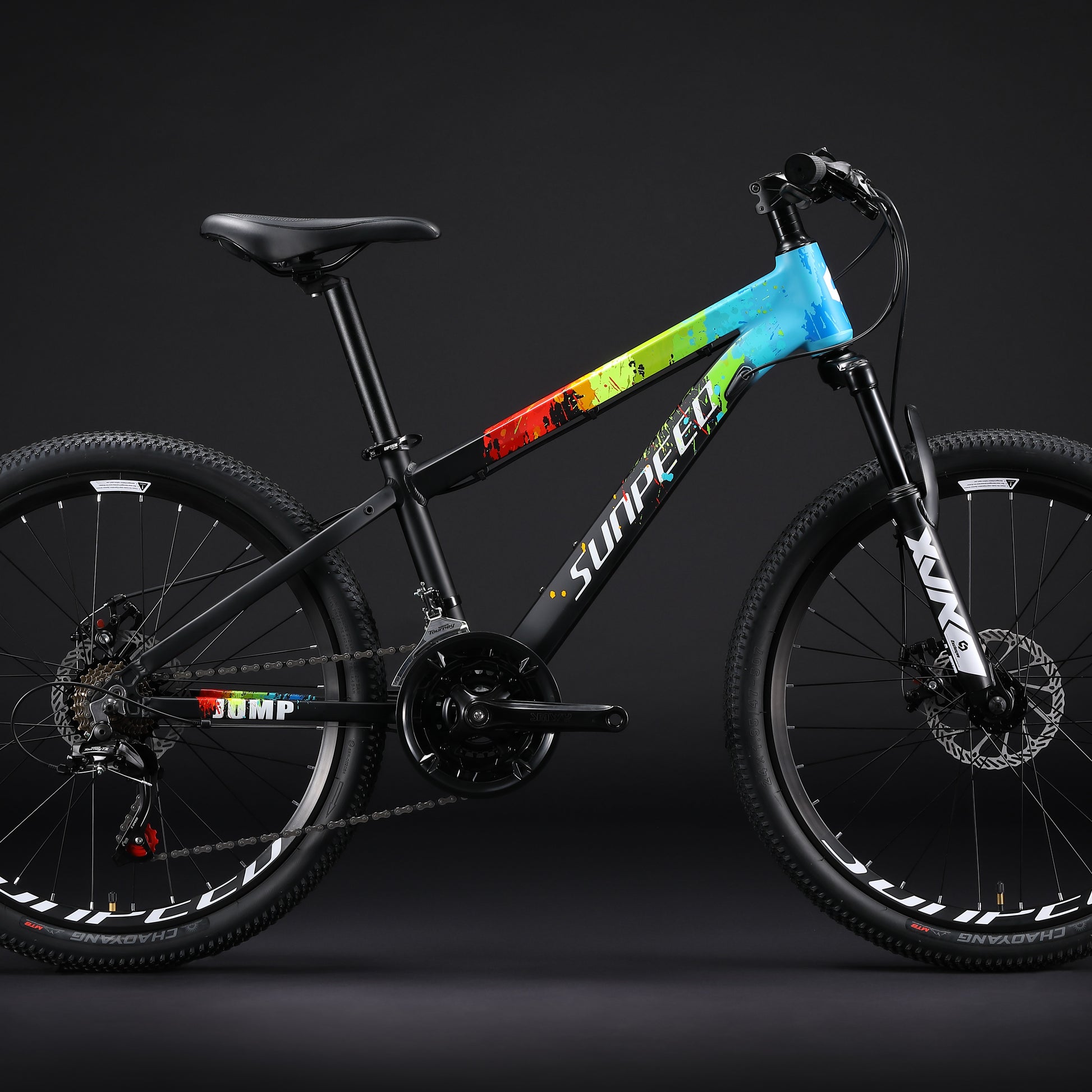

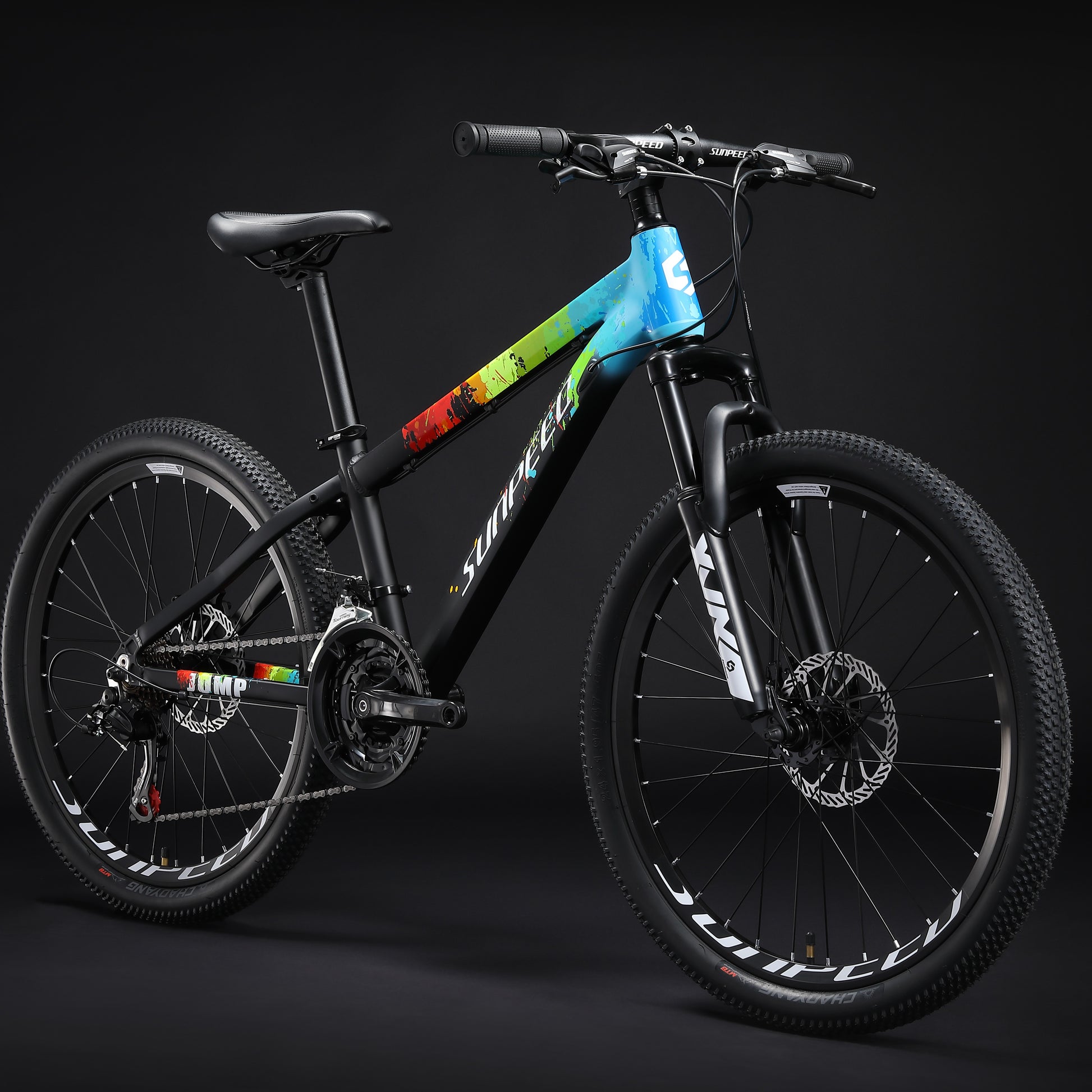

Designed for young riders who are ready to roll, the SUNPEED JUMP combines real mountain bike performance with a lightweight, durable 6061-T6 aluminium frame and 80mm suspension fork for confident control on any terrain.
With Shimano 21-speed drivetrain, mechanical disc brakes, and rugged 24″ x 1.95″ tyres, it’s built to climb, cruise, and explore. At just 12.5kg, it’s easy to handle, tough enough for trails, and perfect for growing riders ready for their next challenge. Built like a pro bike – just sized for kids.
Built for big adventures. Sized for young riders – SUNPEED JUMP.
SPECIFICATIONS
FRAMESET
FRAME: SUNPEED JUMP ALUMINIUM 6061-T6 FRAME 24″x13″

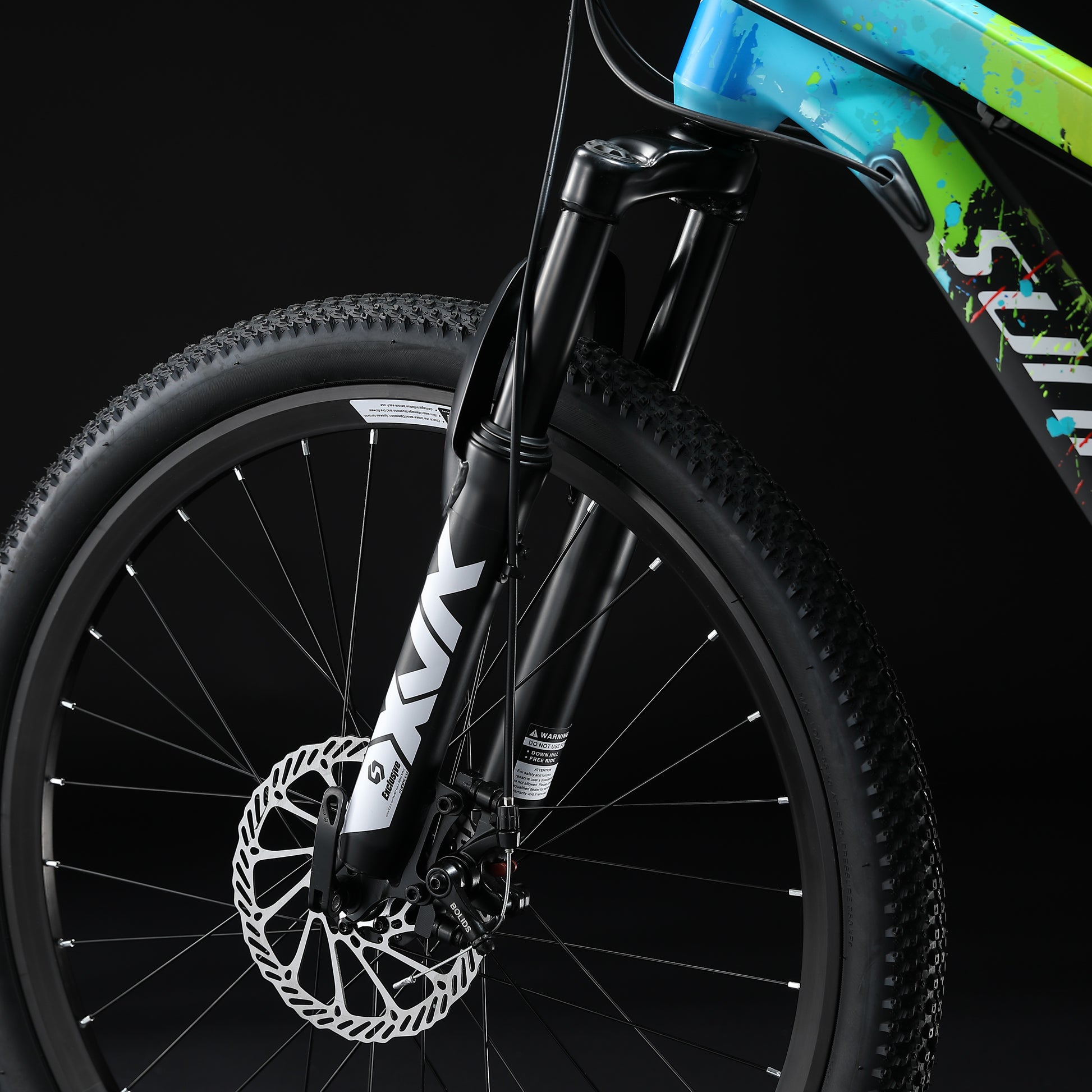

FORK: SUNPEED XC10 80mm 24″
WHEELSET
FRONT HUB: SOLON DH701 M9 32H QR ALUMINIUM
REAR HUB: SOLON DH702 M9 32H QR ALUMINIUM
SPOKES/NIPPLES: SLE 45# STEEL
RIMS: ALUMINIUM WHEELSET 25mm
TYRE: CHAOYANG 24″ x 1.95″ A/V
DRIVETRAIN
SHIFTER: SHIMANO TOURNEY EF500 21 speed
FRONT DERAILLEUR: SHIMANO TOURNEY TY300 21 speed

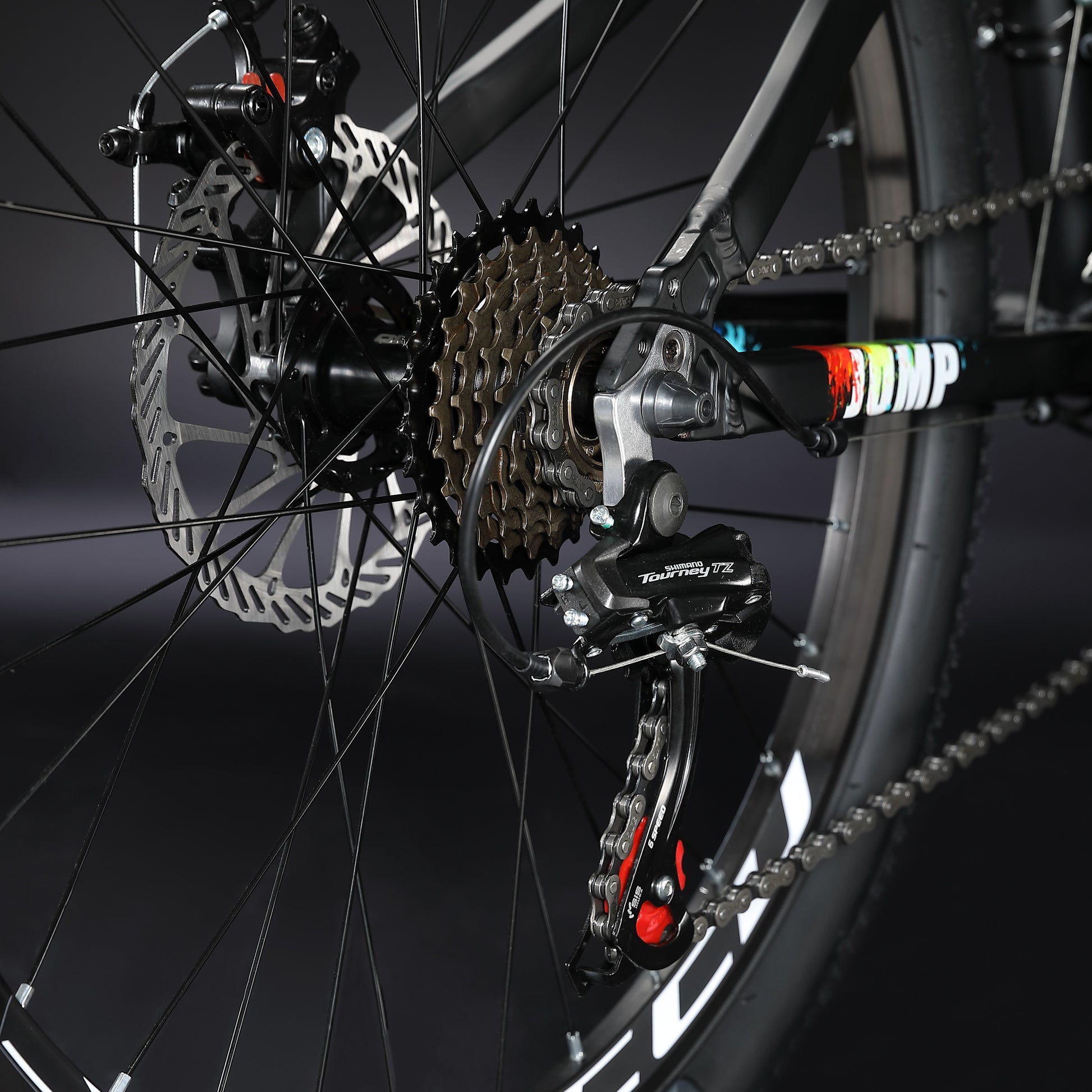

REAR DERAILLEUR: SHIMANO CLARIS TZ500 21 speed
CASSETTE: SUNRUN FW-71 13/28T 21 speed

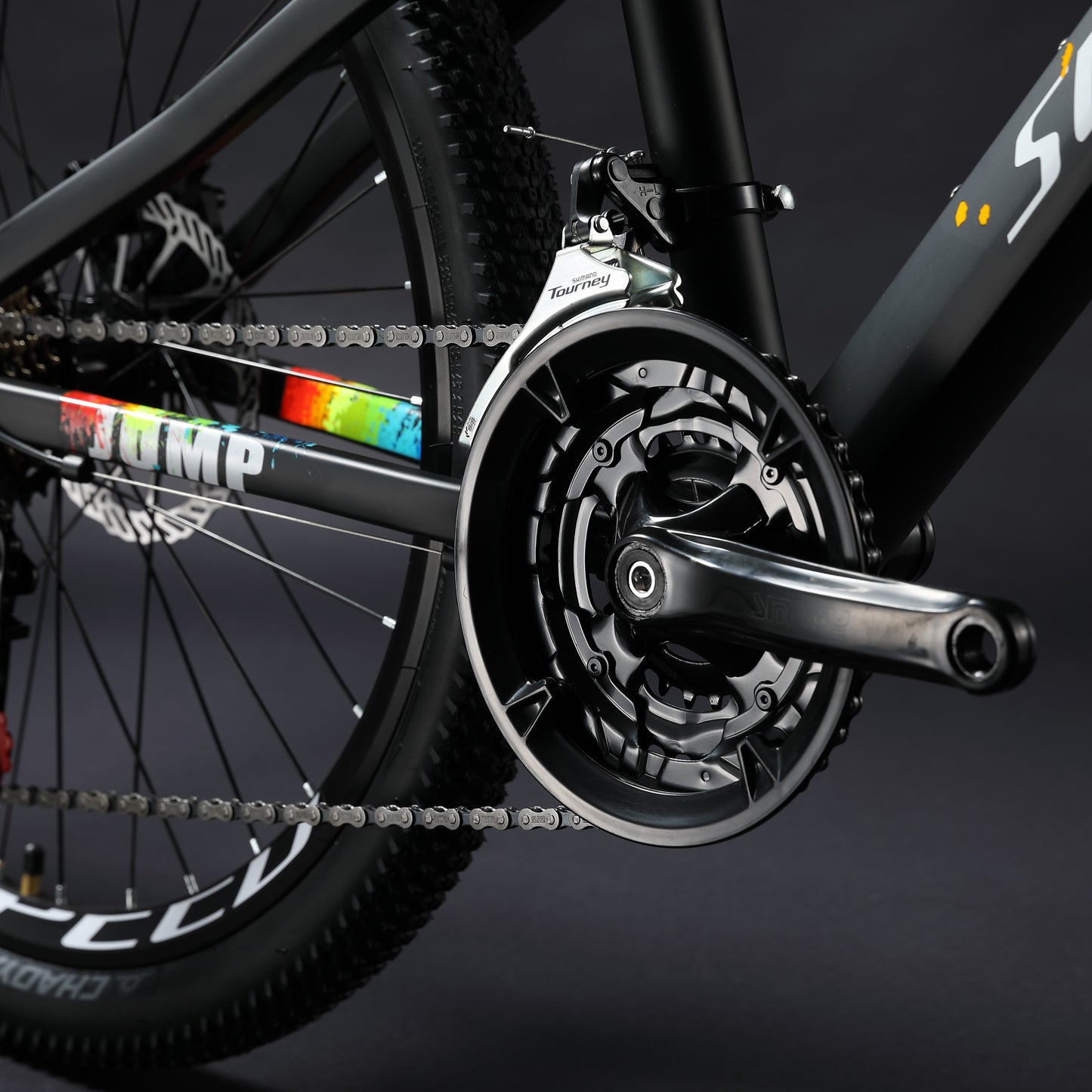

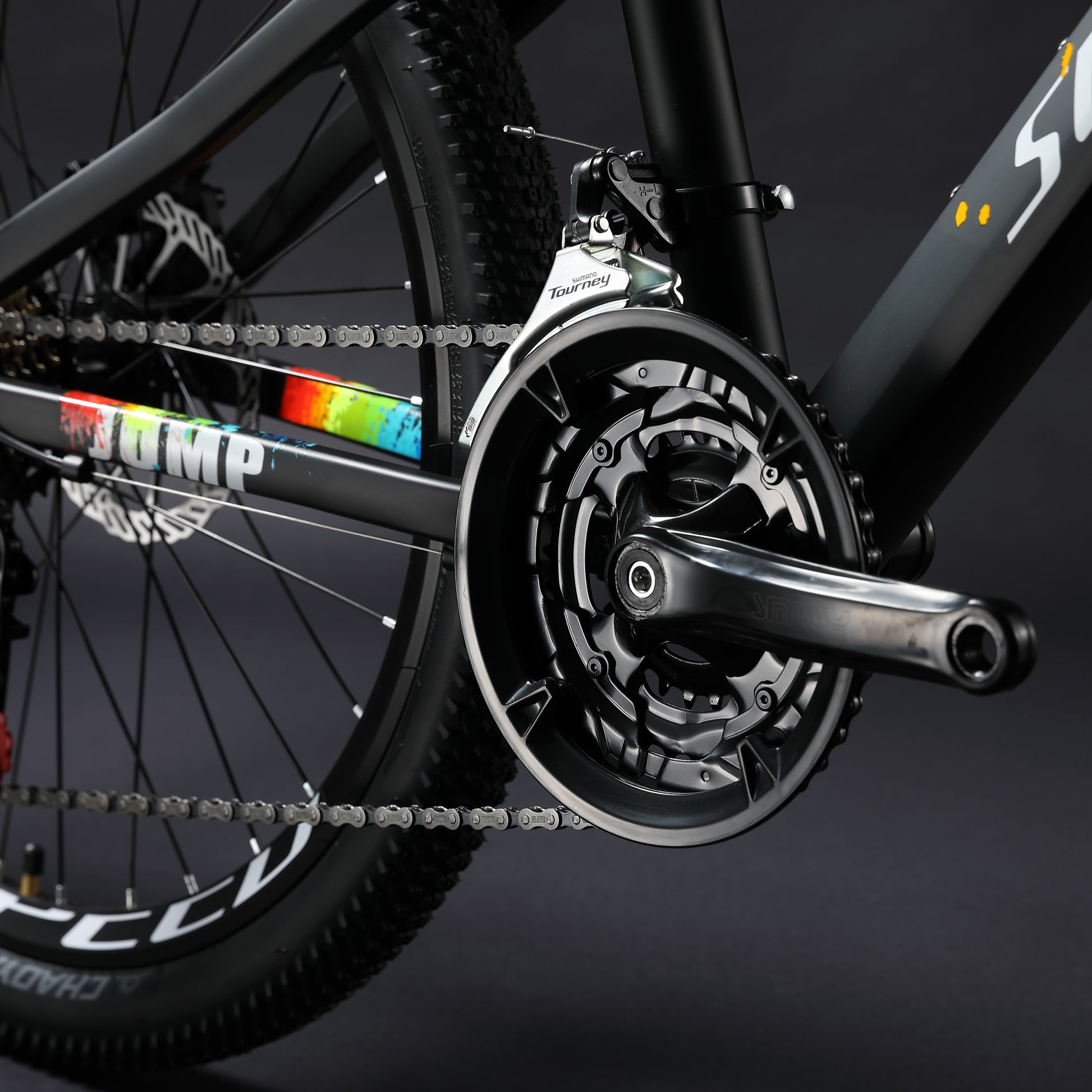

CRANKSET: PROWHEEL AC49 42/32/24 ALUMINIUM 21 speed
BOTTOM BRACKET: NECO B910 SEALED CARTRIDGE BEARINGS
CHAIN: YBN S7
BRAKE GROUP

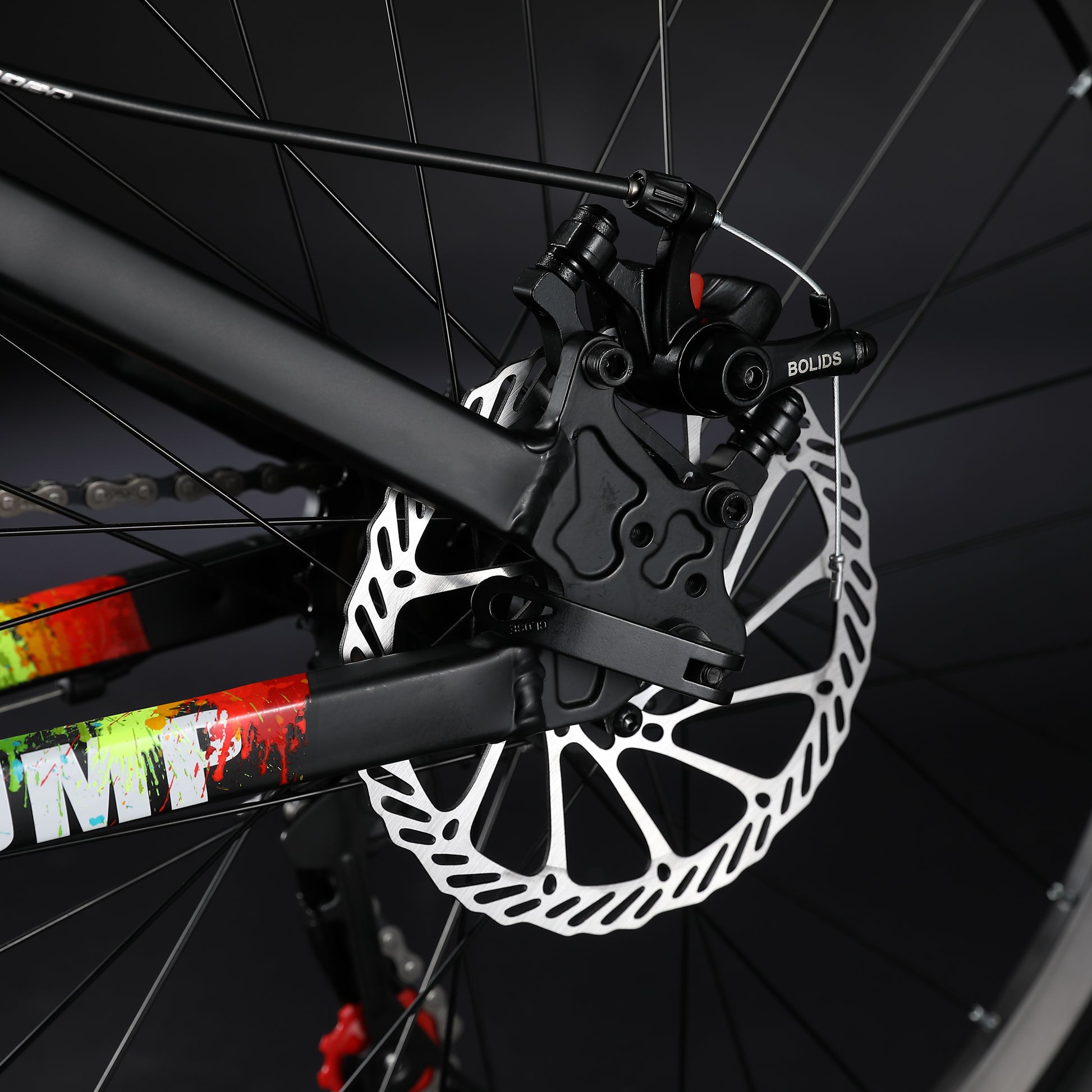

FRONT & REAR BRAKE: BOLI BB8 160mm ALUMINIUM
BRAKE LEVERS: SHIMANO TOURNEY EF500
COMPONENTS
SEAT POST: SUNPEED XC10 ALLOY POST 31.6
SEAT POST CLAMP: SUNPEED ALLOY 34.9
SADDLE: SUNPEED XC10 DUSTER RL
HEADSET: NECO SEALED CARTRIDGE BEARINGS
STEM: SUNPEED XC10 ALUMINIUM STEM

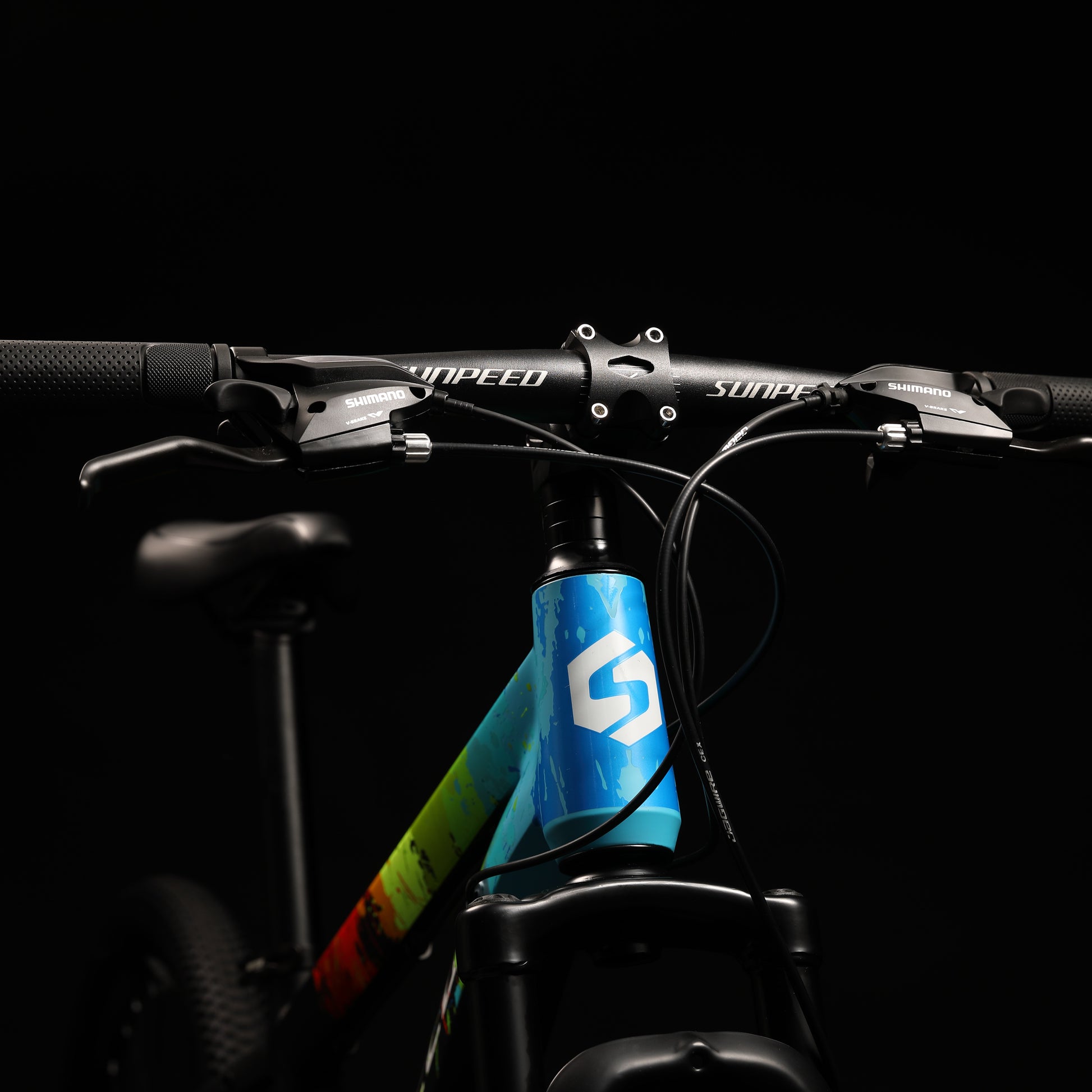

HANDLEBAR: SUNPEED DB LITE 680mm
GRIPS: XH-G56
PEDALS: NECO ALUMINIUM
SIZE & WEIGHT
WHEEL SIZE: 24″
FRAME SIZE: 12.5″
NET WEIGHT (kg): 12.5
GROSS WEIGHT (kg): 15.5
PACKAGING DIMENSIONS (cm): 121 x 19 x 68
