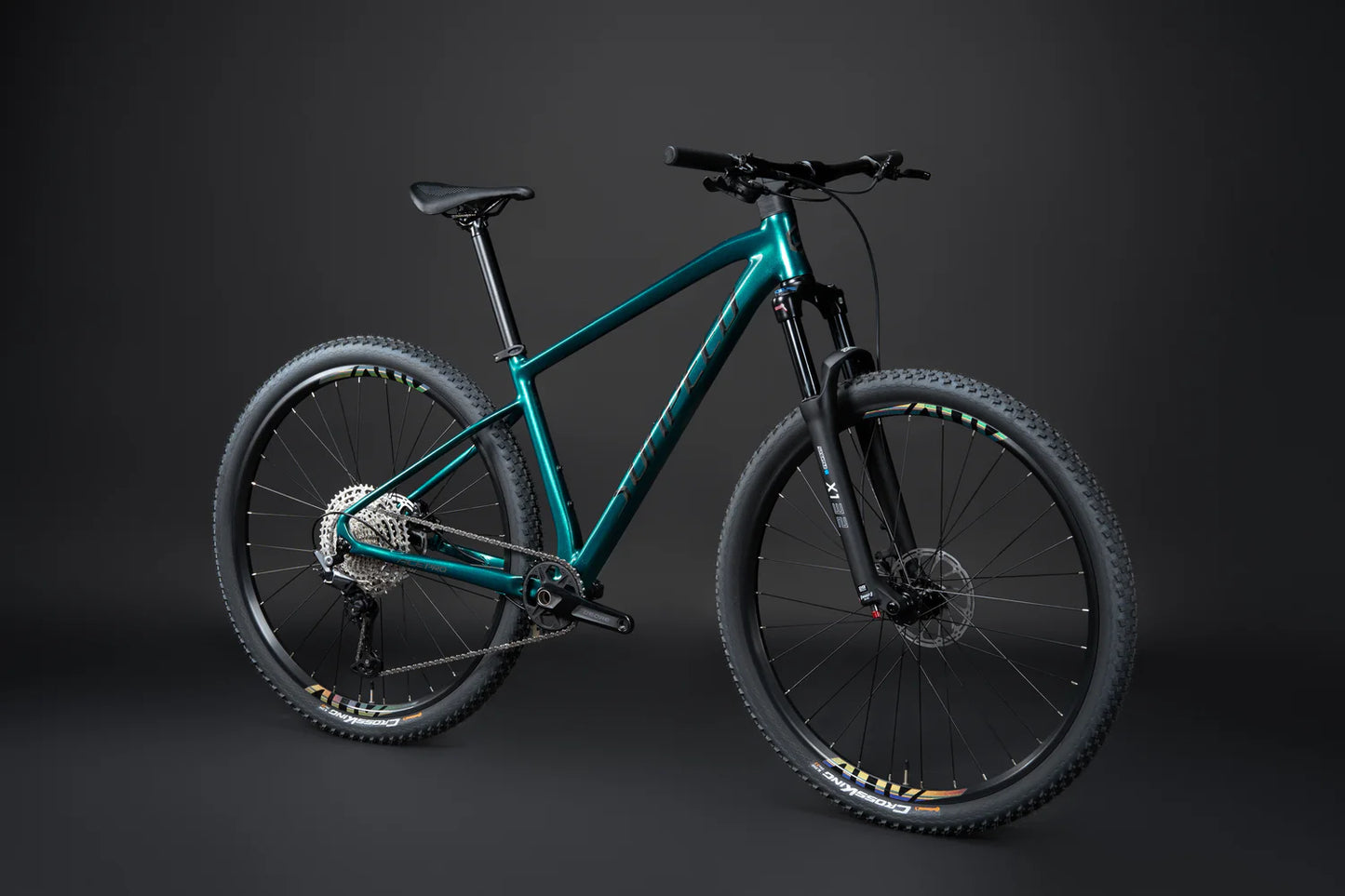

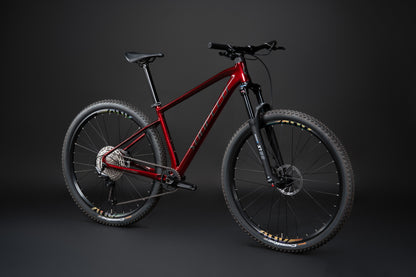

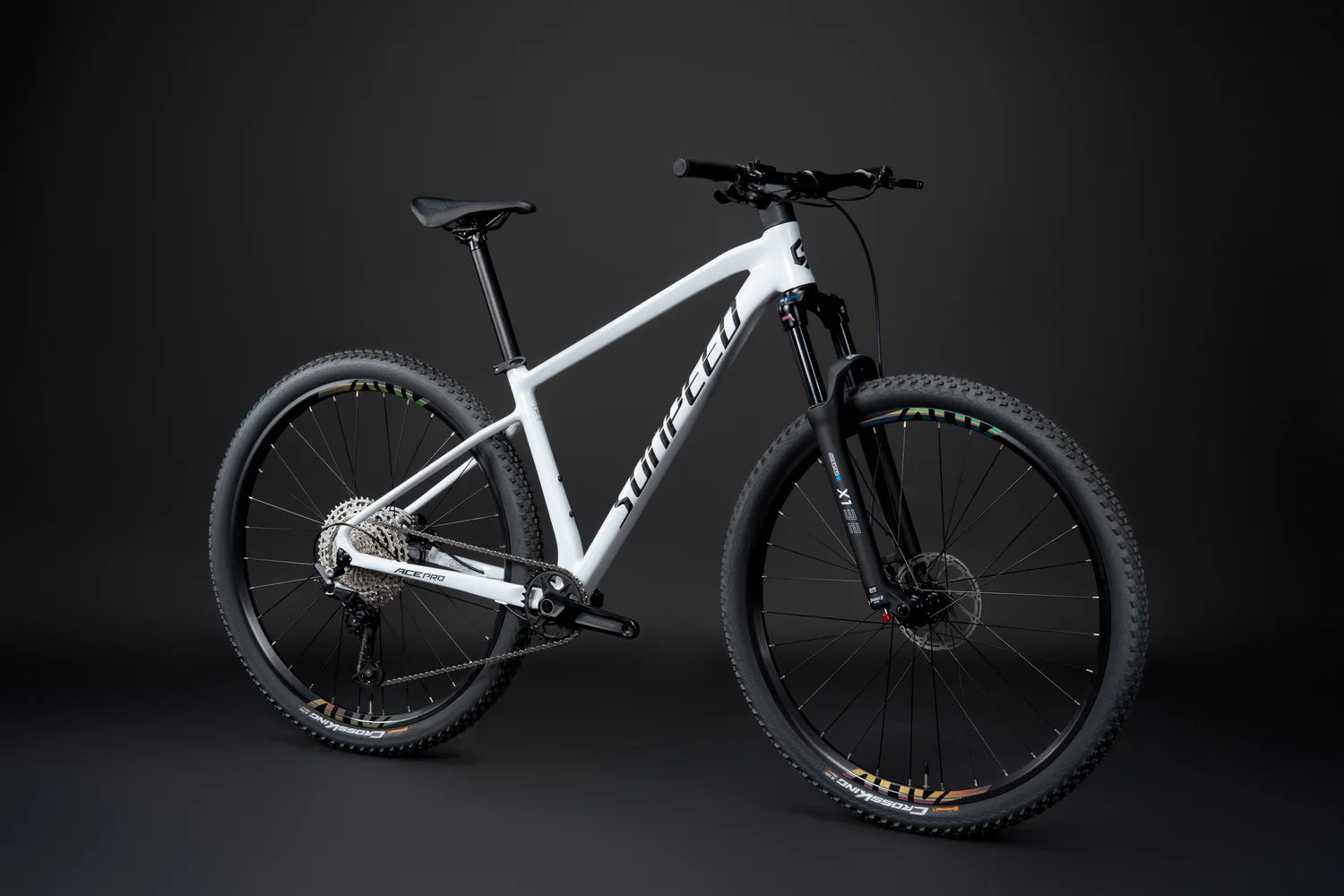

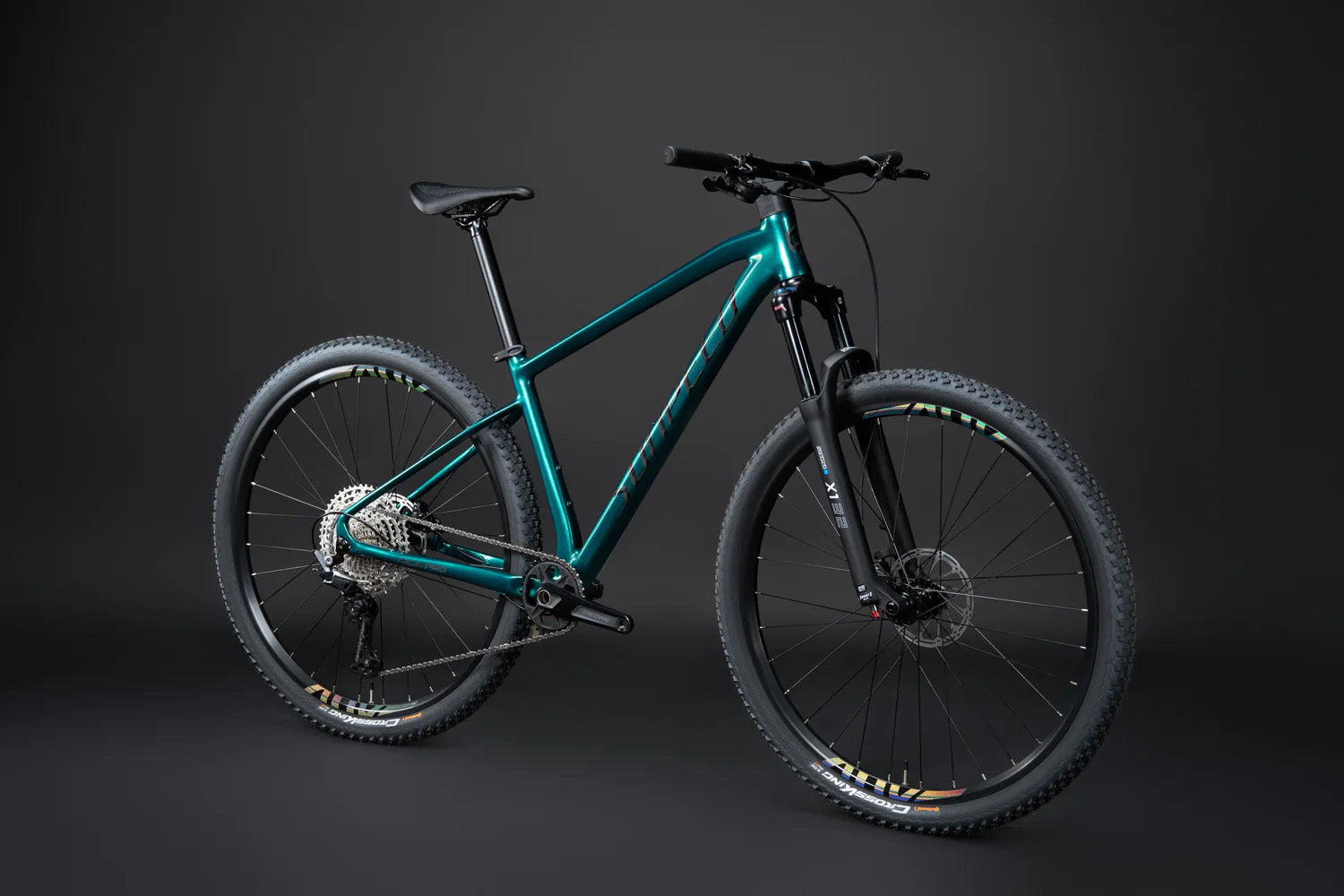

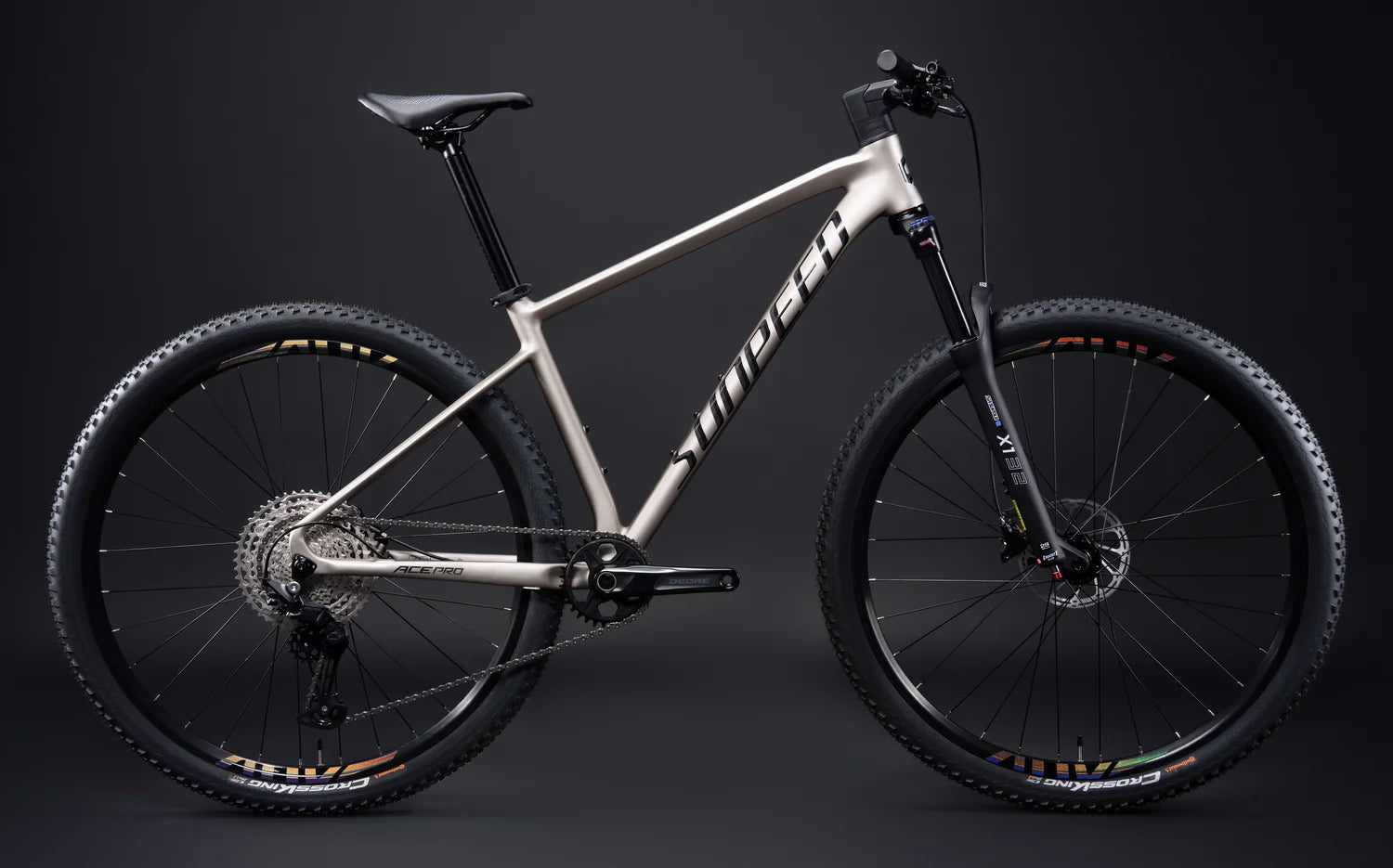

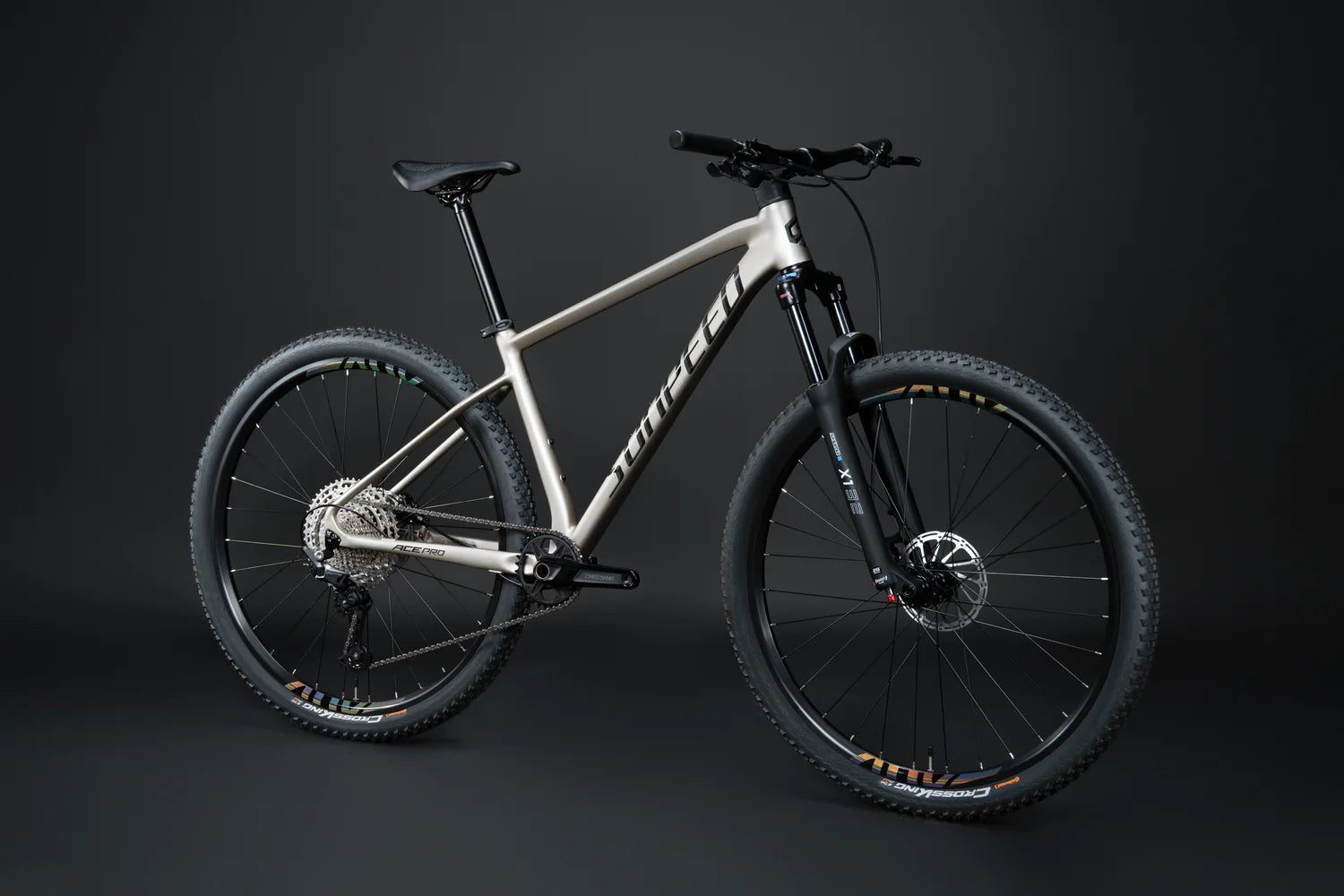

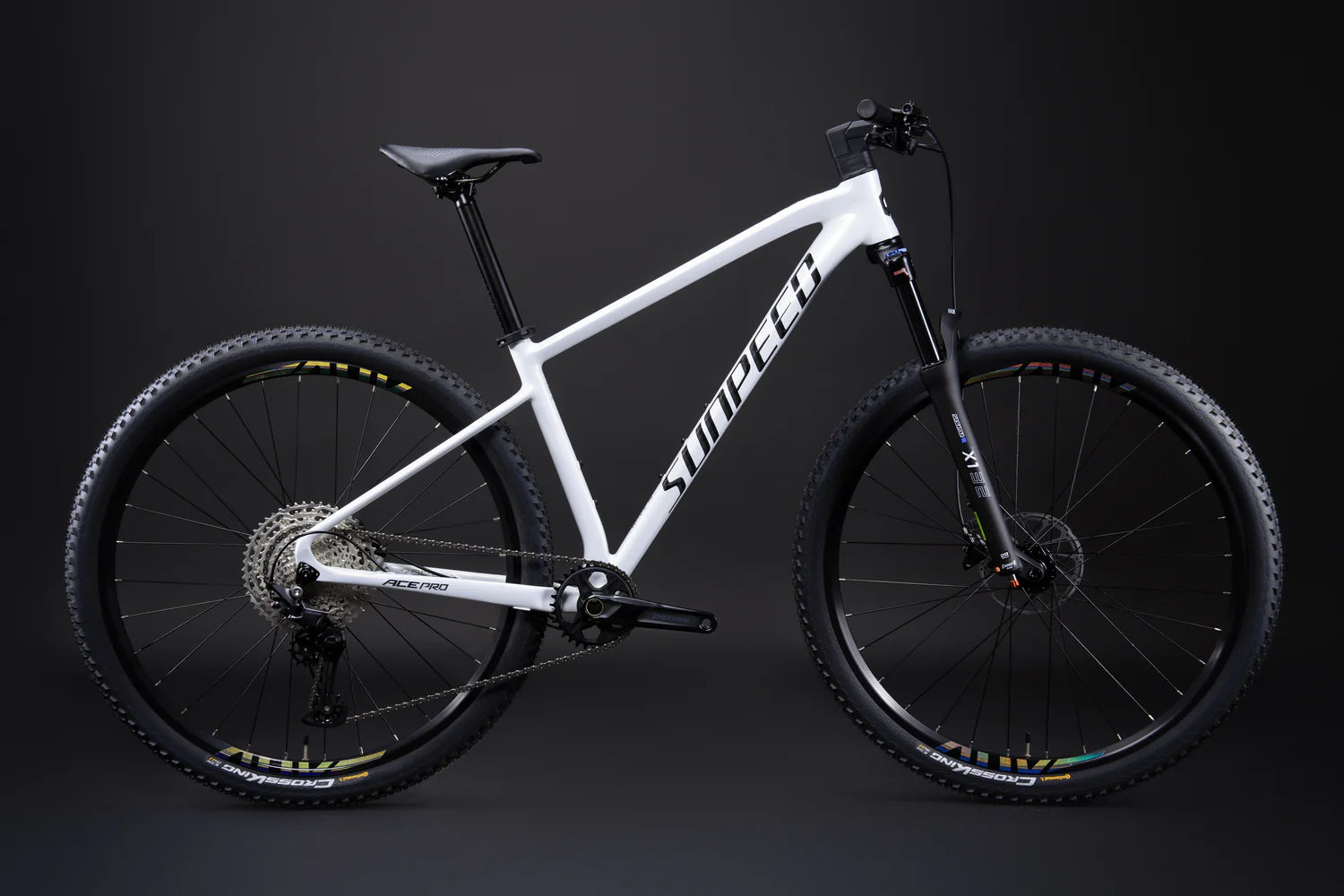

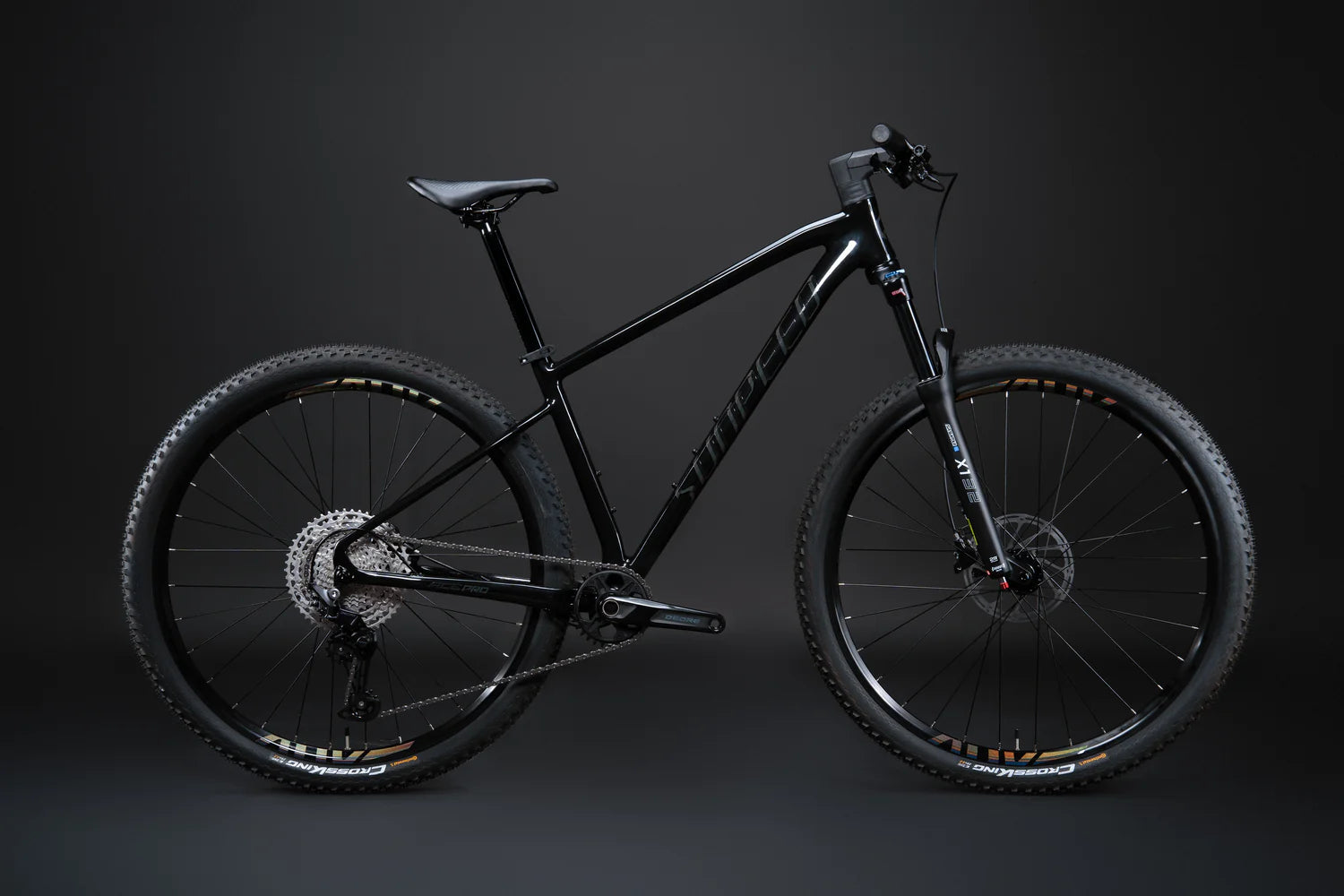

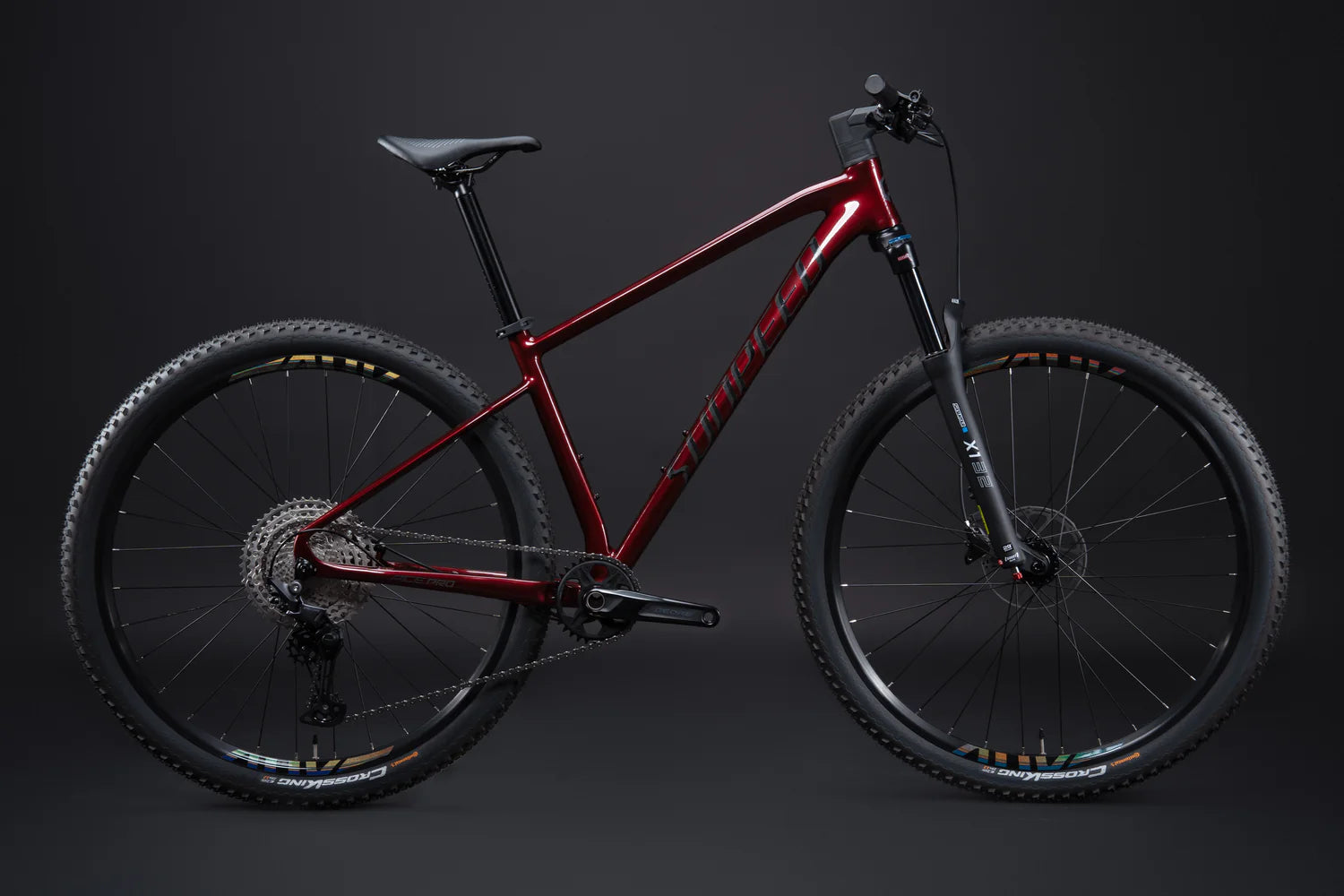

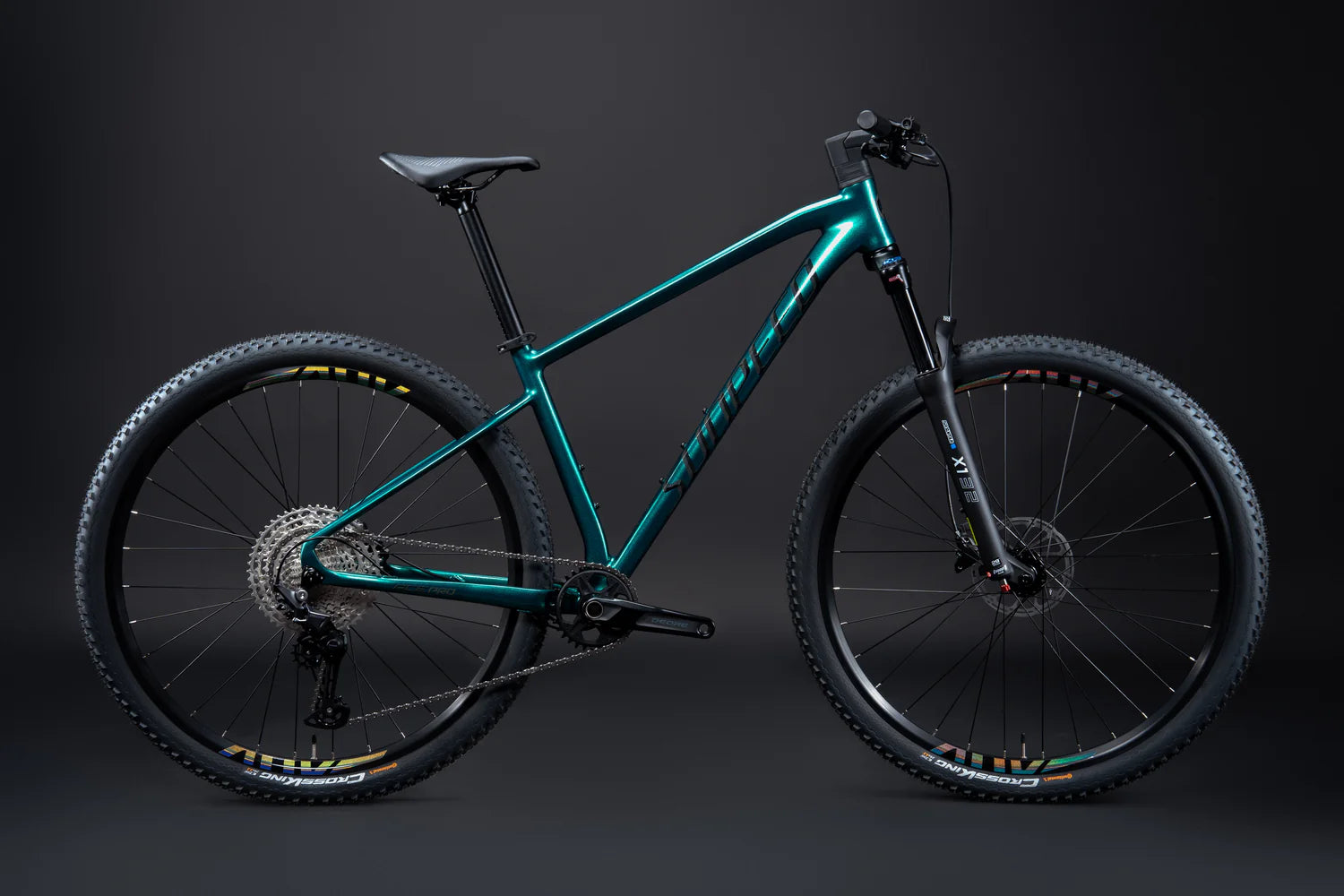

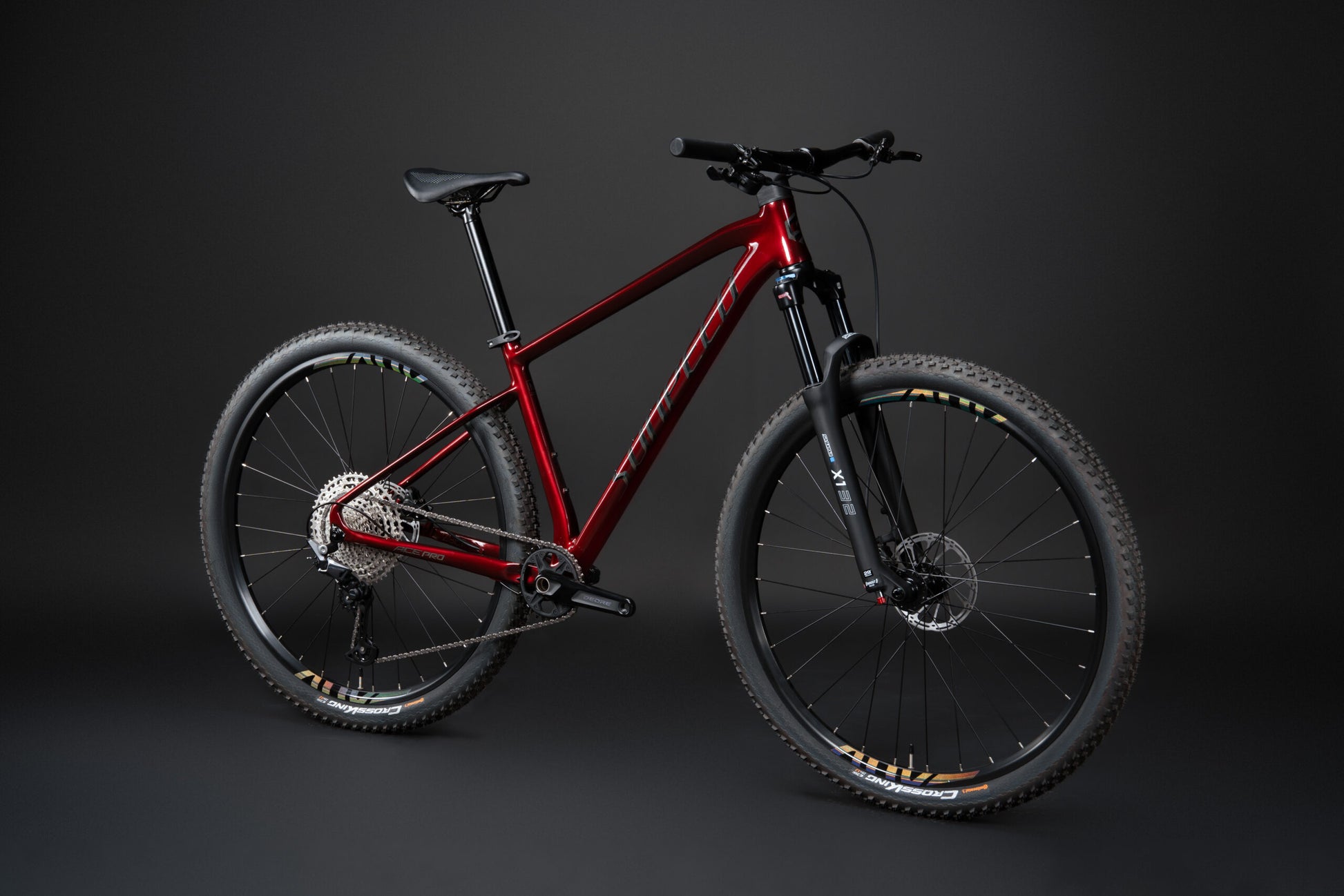

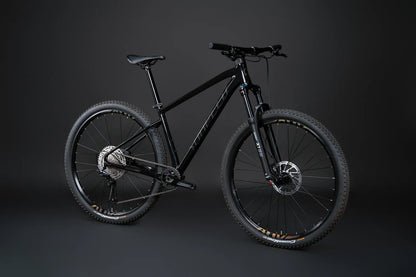

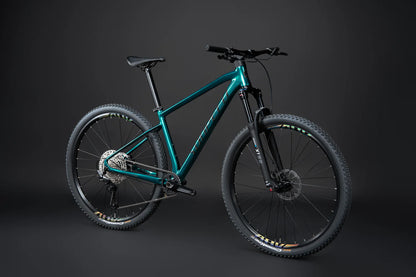

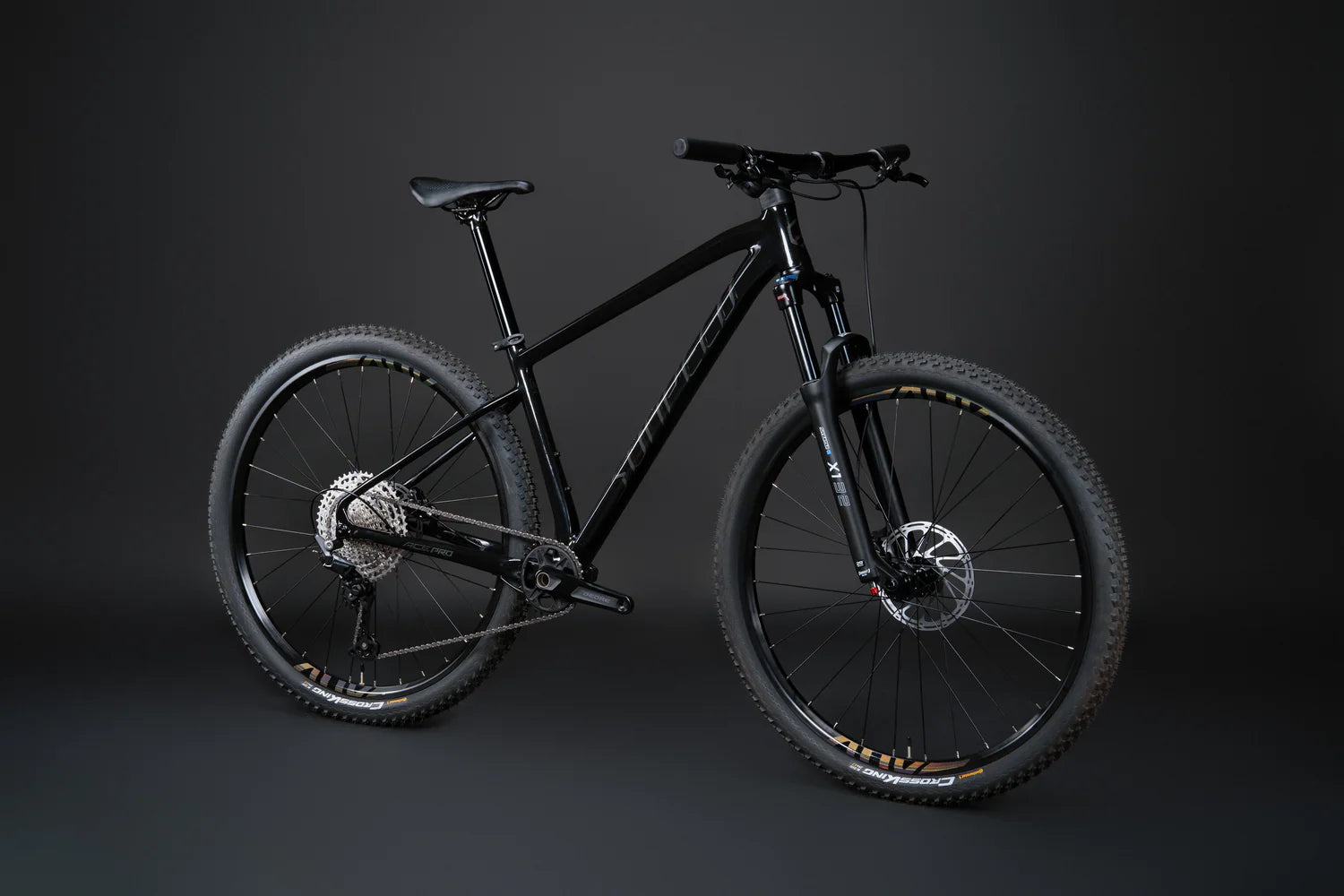

Conquer trails with confidence on the SUNPEED ACE PRO, engineered with a durable boost 29″ alloy frame and smooth 120mm Suntour X1 air fork for unbeatable control and comfort.
Powered by Shimano Deore 12-speed drivetrain and stopping on a dime with Shimano MT-200 hydraulic disc brakes, this bike blends precision, power, and reliability. Rugged Continental Cross King 29″ x 2.2″ tyres tackle any terrain, while ultralight alloy components keep weight down to just 12.8kg.
Trail-ready, rider-focused — The SUNPEED ACE PRO is your ticket to adventure.
SPECIFICATION
FRAMESET

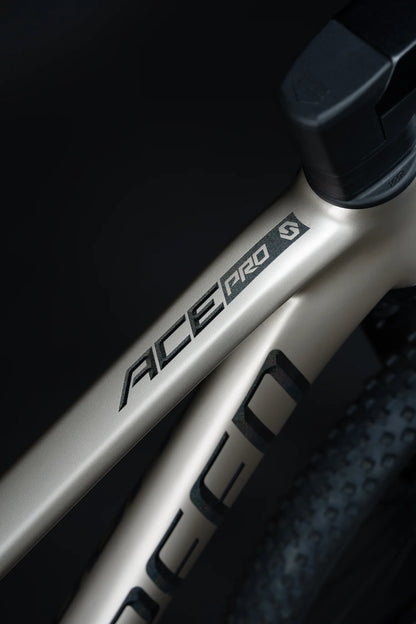

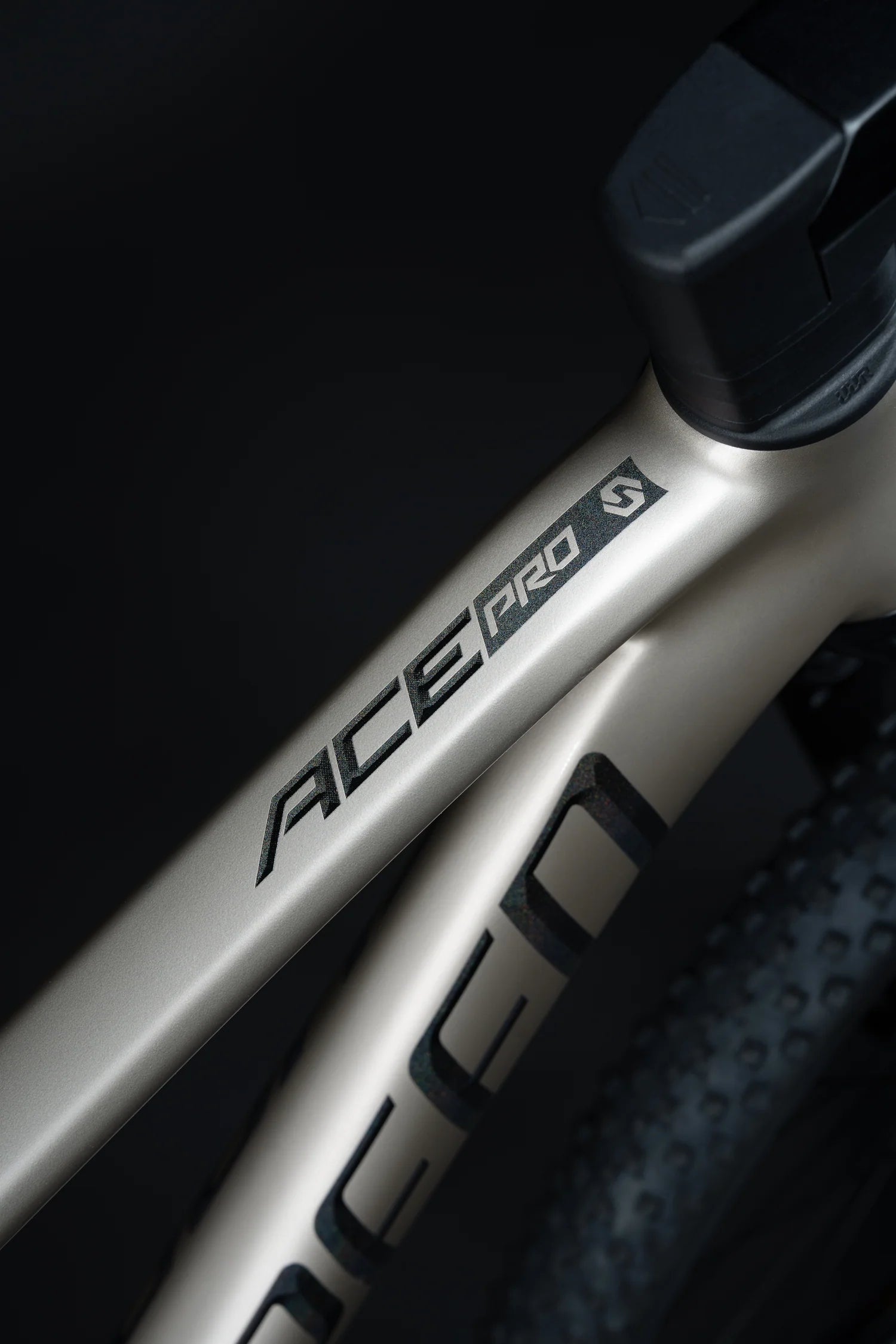

FRAME: SUNPEED ACE PRO ALUMINIUM FRAME BOOST 29″ AXLE

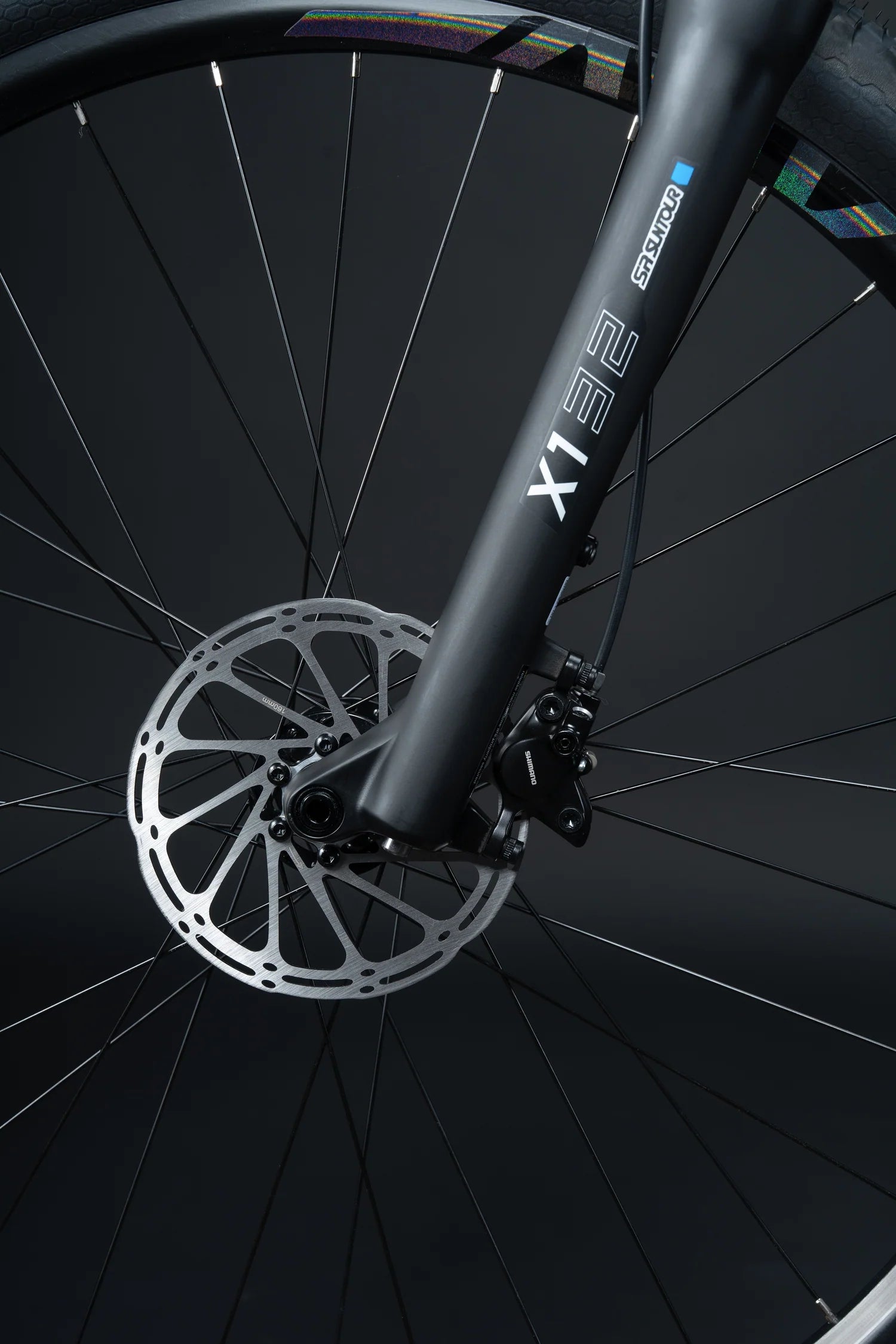

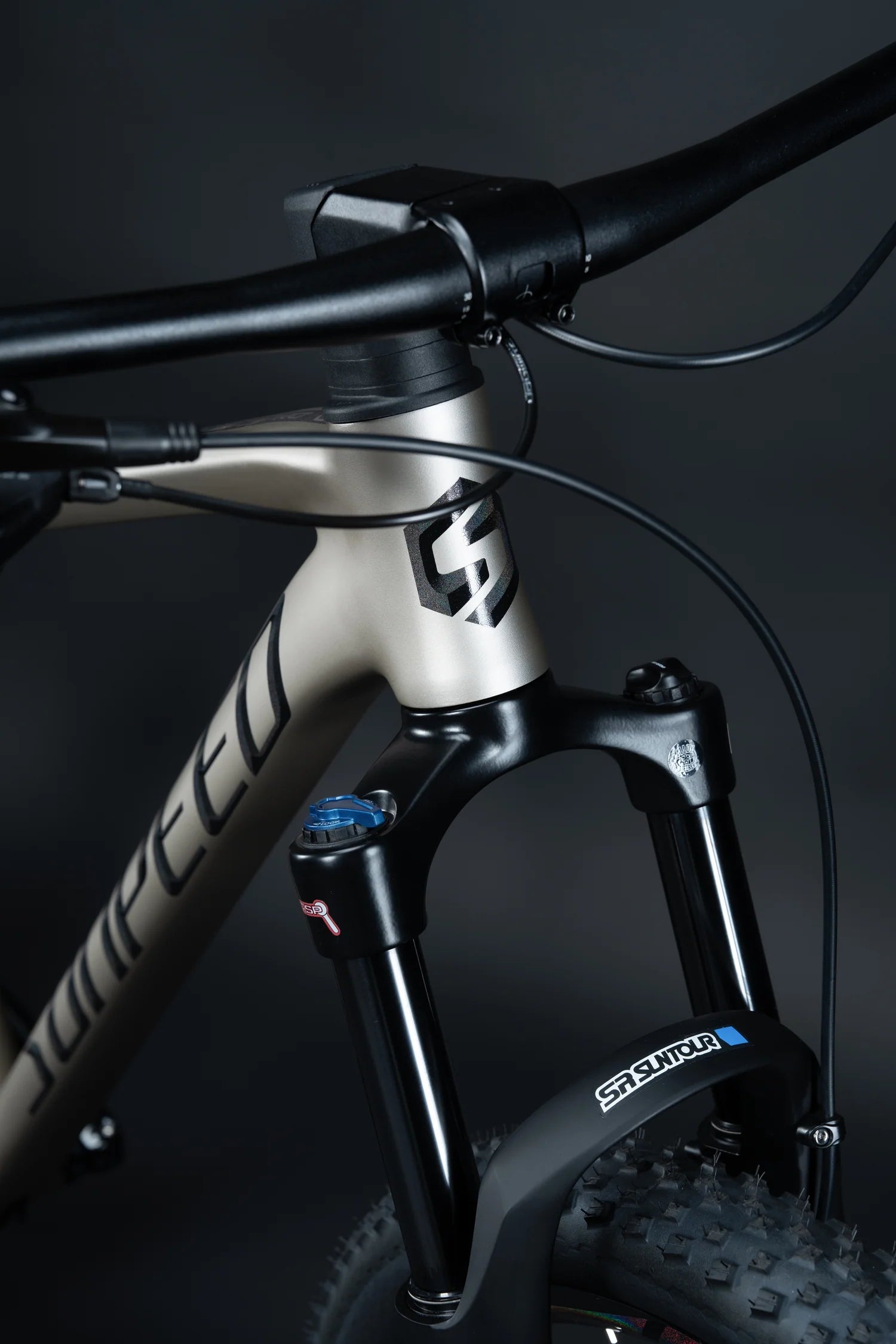

FORK: SUNTOUR X1 AIR 120mm BOOST 110*15mm
WHEELSET
FRONT HUB: ANV ALLOY 32H AXLE 2 SEALED BEARINGS BOOST 110*15mm
REAR HUB: ANV ALLOY 32H AXLE 4 SEALED BEARINGS BOOST 148*12mm
SPOKES/NIPPES: SLE STAINLESS STEEL COMPETITION STRIGHT PULL
RIMS: ANV ALUMINIUM 32H
TIRE: CONTINENTAL CROSS KING 29*2.2 60TPI

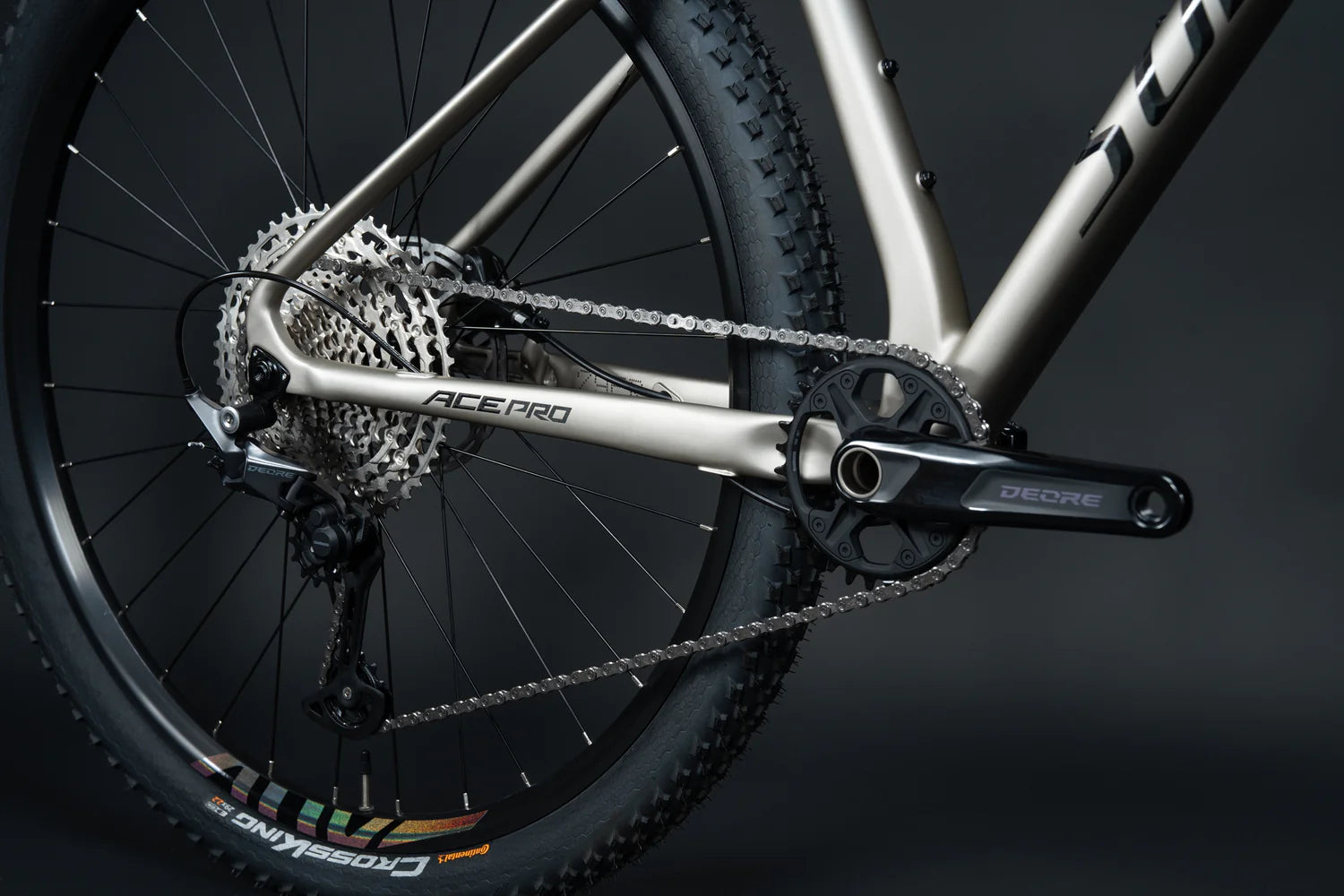

DRIVETRAIN
SHIFTER: SHIMANO DEORE M6100 12S
FRONT DERAILLEUR: NIL
REAR DERAILLEUR: SHIMANO DEORE M6100 12S
CASSETTE: SHIMANO M6100 10-51T 12S

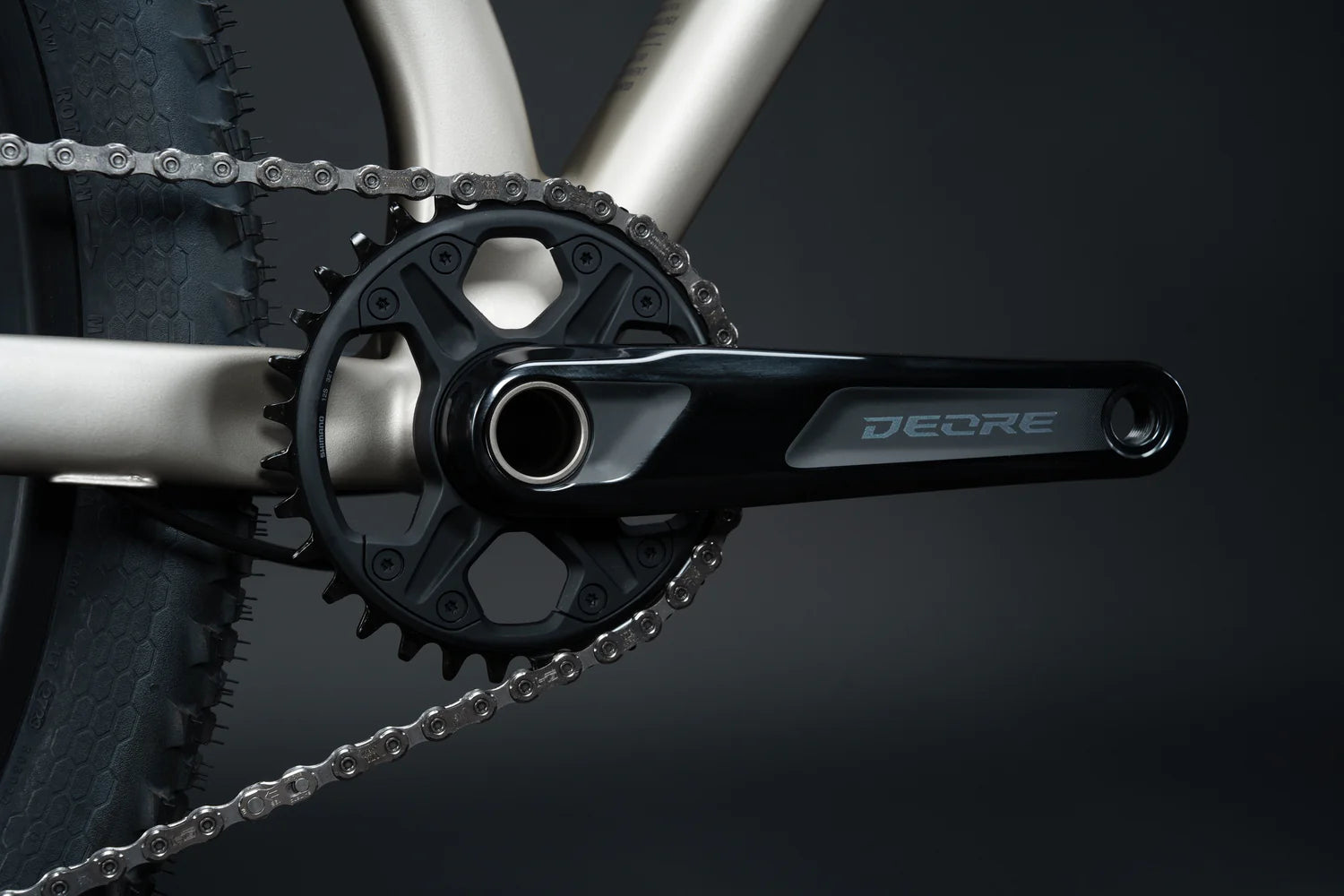

CRANKSET: SHIMANO FC M6100 32T 170MM 12S
BOTTOM BRACKET: SENICX BB-BSA 24R
CHAIN: SHIMANO CN-6100 12S
BRAKE GROUP
FRONT BRAKE: SHIMANO MT-200 HYDRAULIC DISC BRAKE 160mm

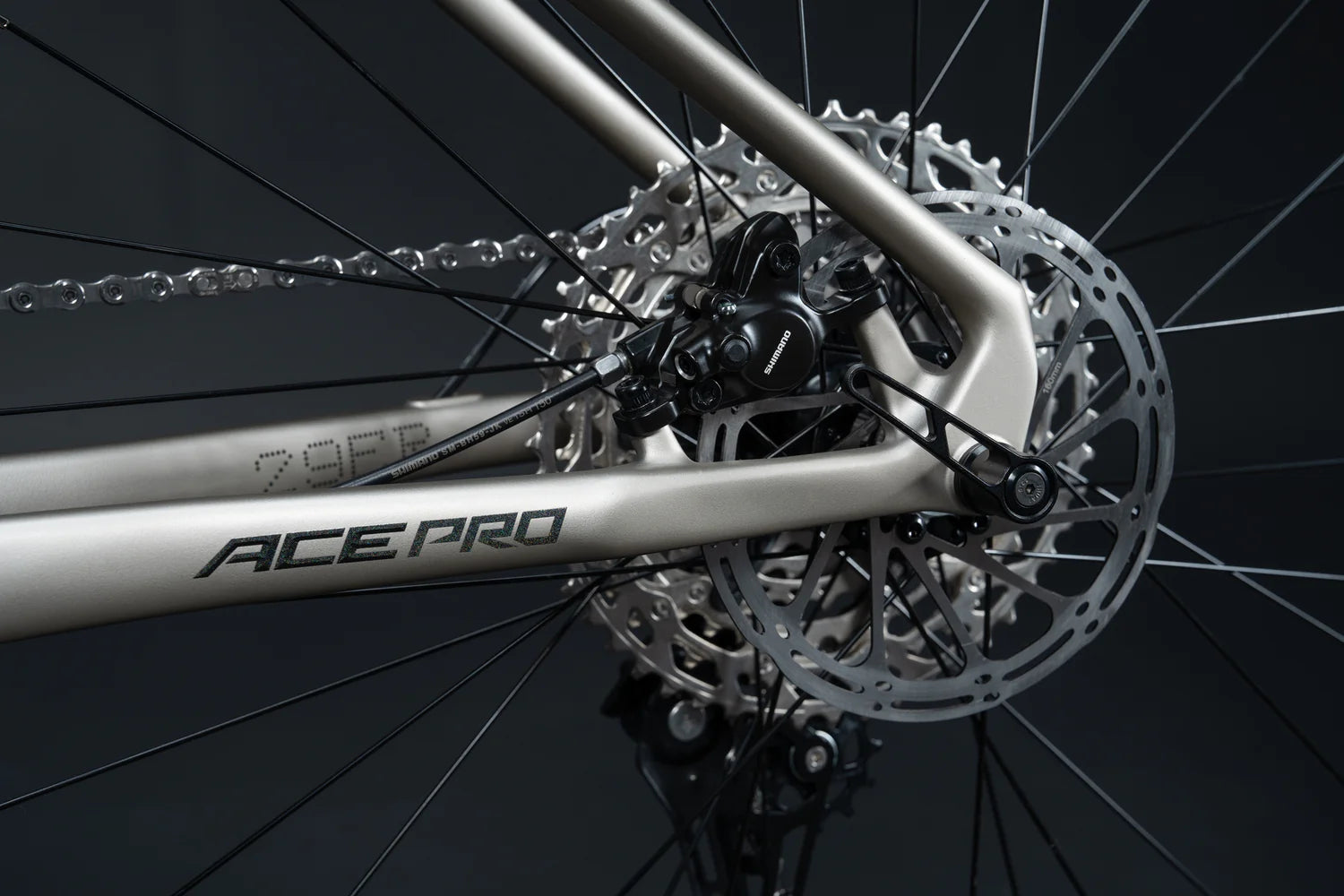

REAR BRAKE: SHIMANO MT-200 HYDRAULIC DISC BRAKE 160mm
BRAKE LEVERS: SHIMANO MT-200
COMPONENTS
SEAT POST: SUNPEED ALLOY POST 31.6*350MM
SEAT POST CLAMP: SUNPEED ALLOY QR 34.9

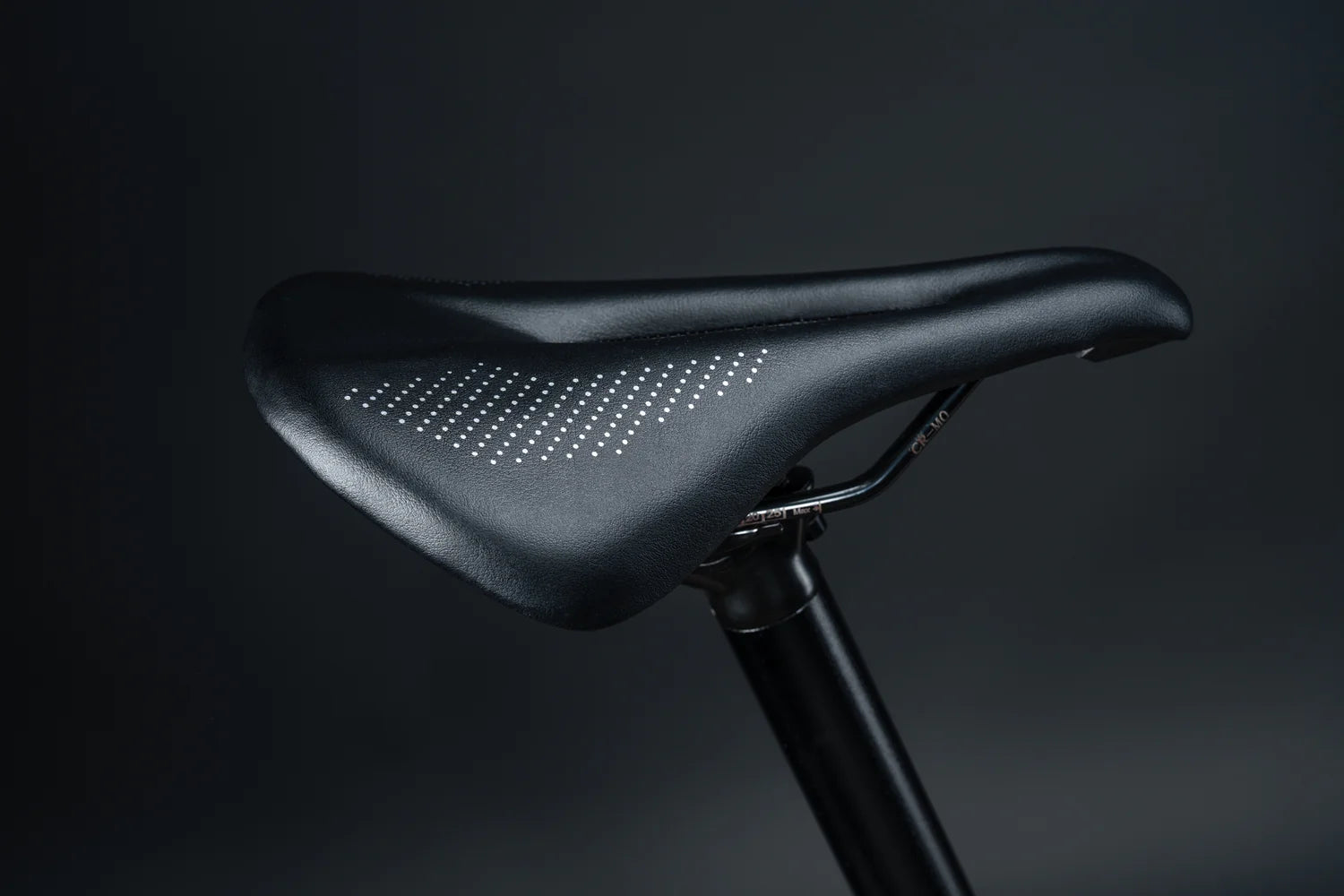

SADDLE: SUNPEED MID-HOLLOW CR-MO
HEADSET: INTERNAL CABLE ROUTING SEALED BEARING HEADSET
STEM: SUNPEED HIDDEN ALLOY STEM
HANDLEBAR: SUNPEED ULTRALIGHT ALLOY 700mm*31.8MM
GRIPS: ODI LOCK ON GRIP
PEDALS: WELLGO ALUMINIUM V249D
SIZE CHART & WEIGHT
(Frame Size: Height)
(S) 15.5: 152-168cm
(M) 17.5: 161-173cm
(L) 19.5: 176-188cm
NET WEIGHT: 12.8kg
Wheel Size: 29″
