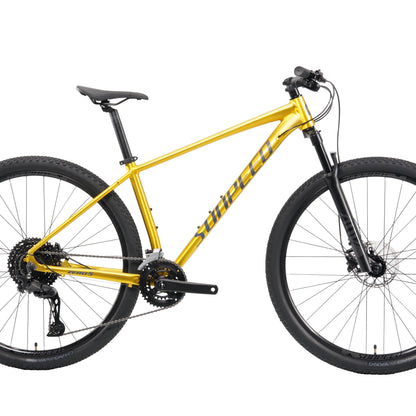

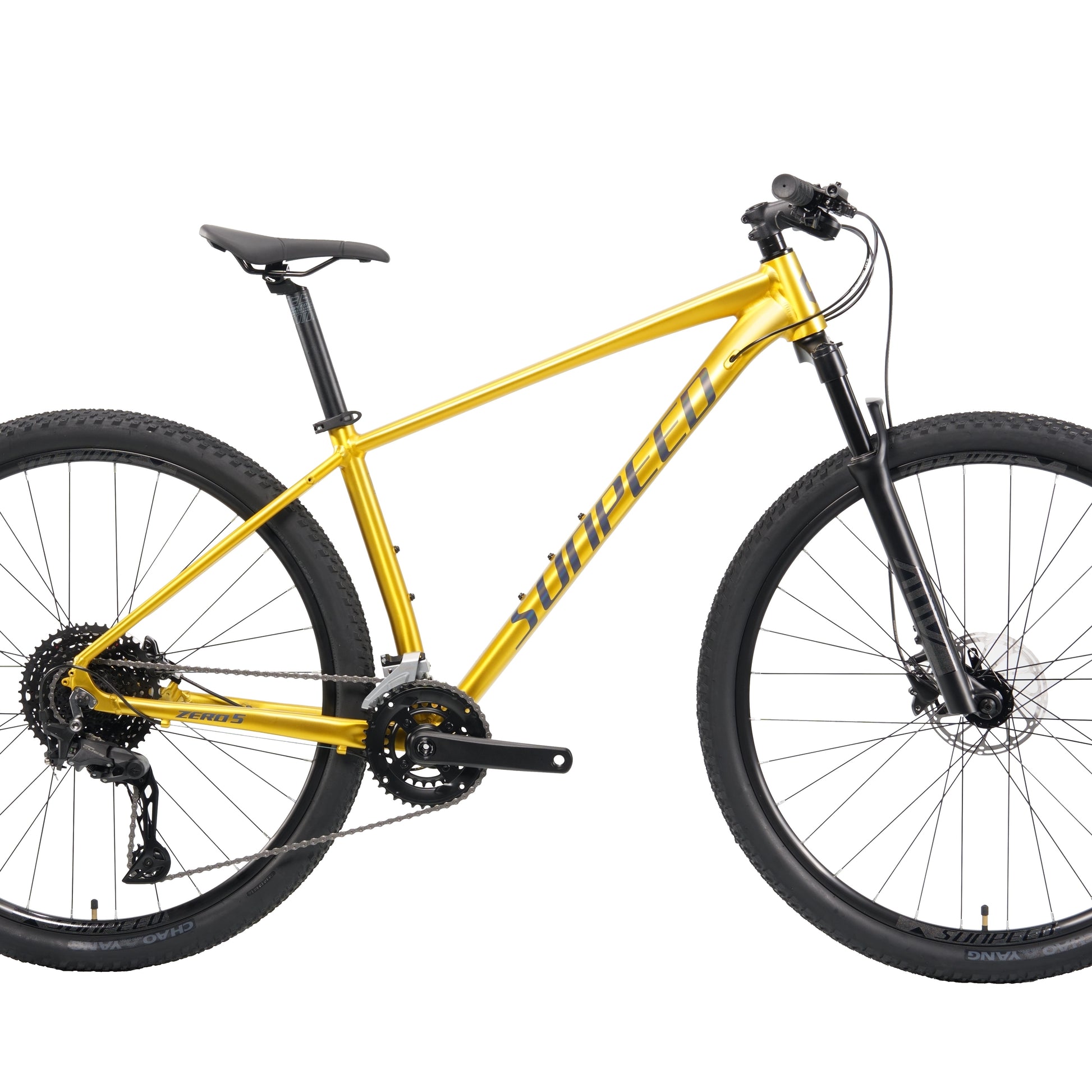

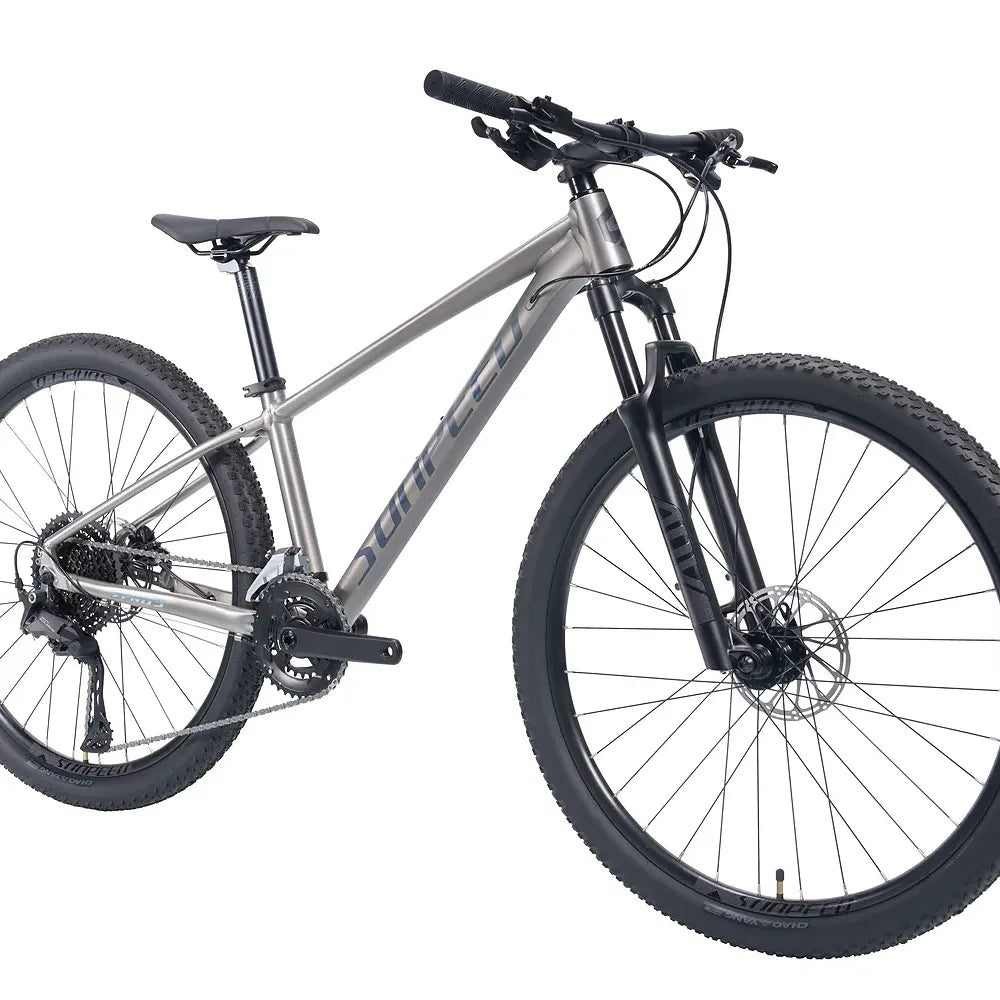

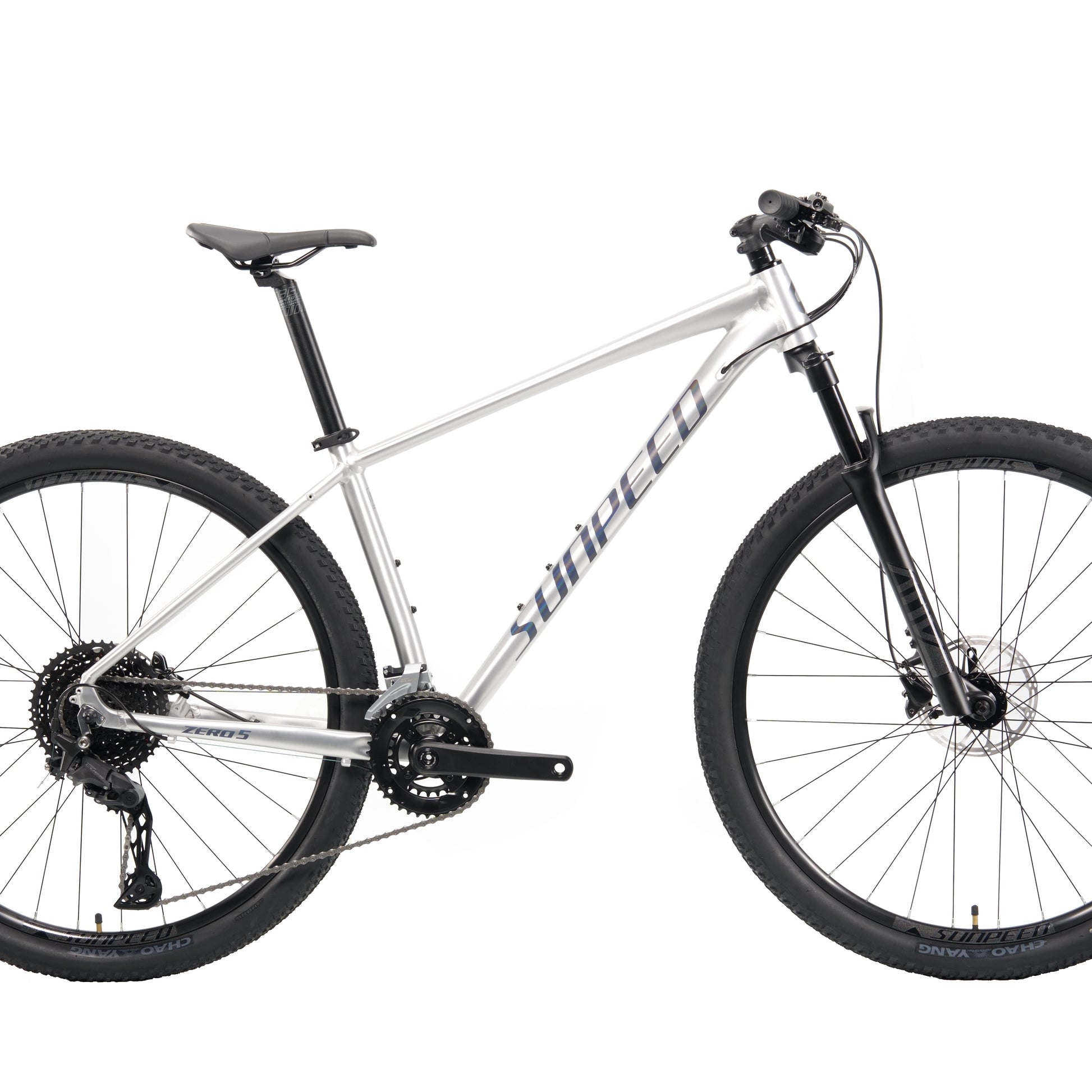

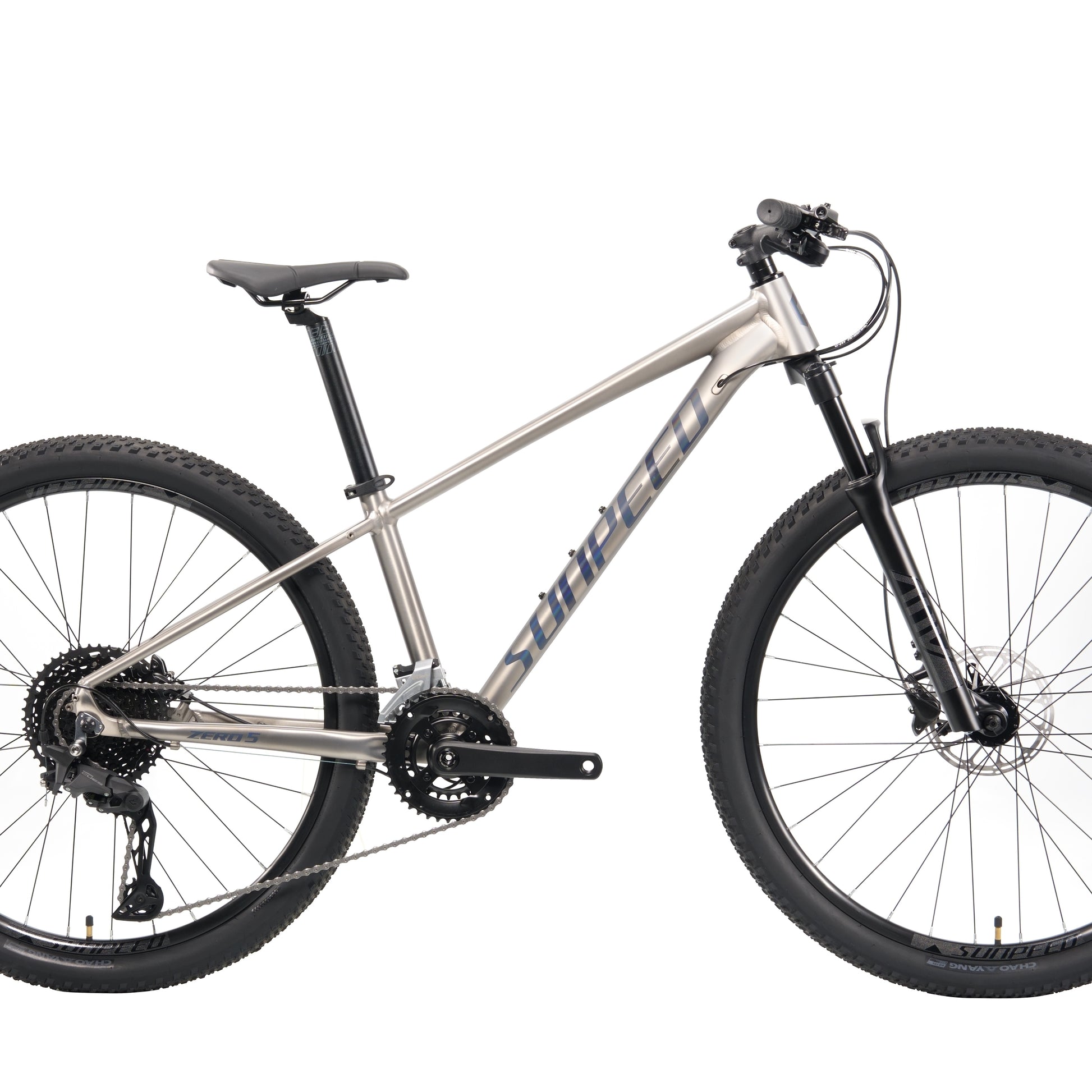

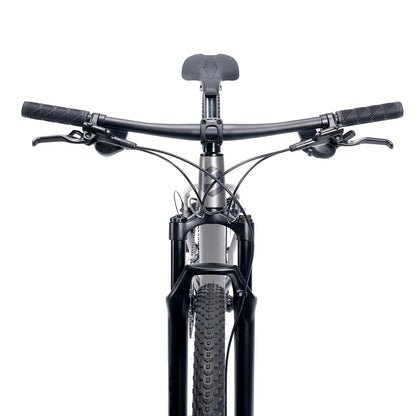

Introducing the ZERO 5 – a performance monster with a trail-blazing spirit. Thin and light 6061-T6 aluminium frame engineered for the adventure within you. Smooth, hydro-powered hydraulic brakes and tough, brutal, SUNPEED suspension set you up for complete control, comfort, and pure rampage over the trail with smooth Shimano CUES 11-speed shifting. Whether cruising or crushing climbs, the ZERO 5 delivers.
SPECIFICATION
FRAMESET
FRAME: SUNPEED ZERO 5 6061-T6 ALUMINIUM FRAME 29″
FORK: SUNPEED 100mm LOCK 29″
WHEELSET
FRONT HUB: SOLON DH901 32H ALUMINIUM
REAR HUB: SOLON DH901 32H ALUMINIUM
SPOKES/NIPPLES: SLE 45# STEEL
RIMS: ALUMINIUM WHEELSET DA26
TIRE: CHAOYANG 29″ x 2.2″ A/V

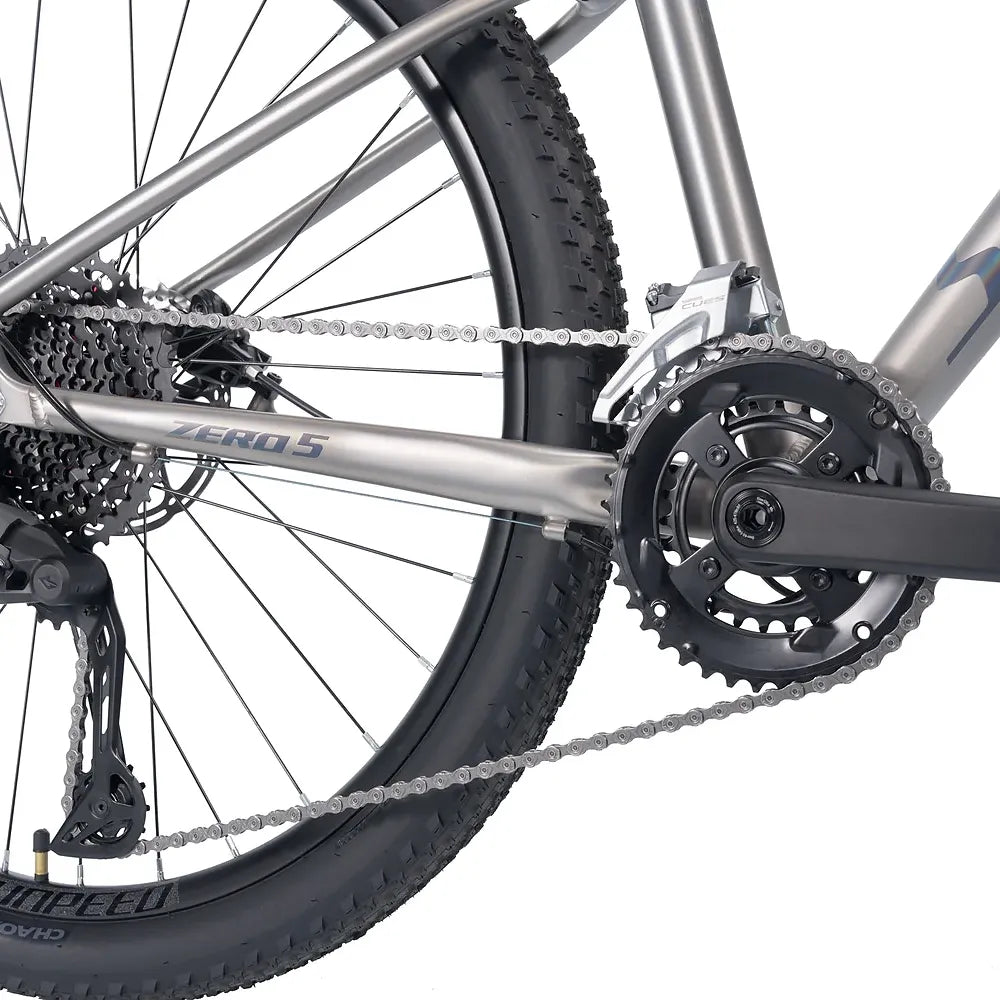

DRIVETRAIN
SHIFTER: SHIMANO CUES U6000 11S
FRONT DERAILLEUR: SHIMANO CUES U4000 2S
REAR DERAILLEUR: SHIMANO CUES U6000 11SPD
CASSETTE: SUGEK 11-46T 11S
CRANKSET: PROWHEEL RMX TH01S TT 26/40T 170
BOTTOM BRACKET: PROWHEEL BB92
CHAIN: KMC 11S 114L/116L
BRAKE GROUP

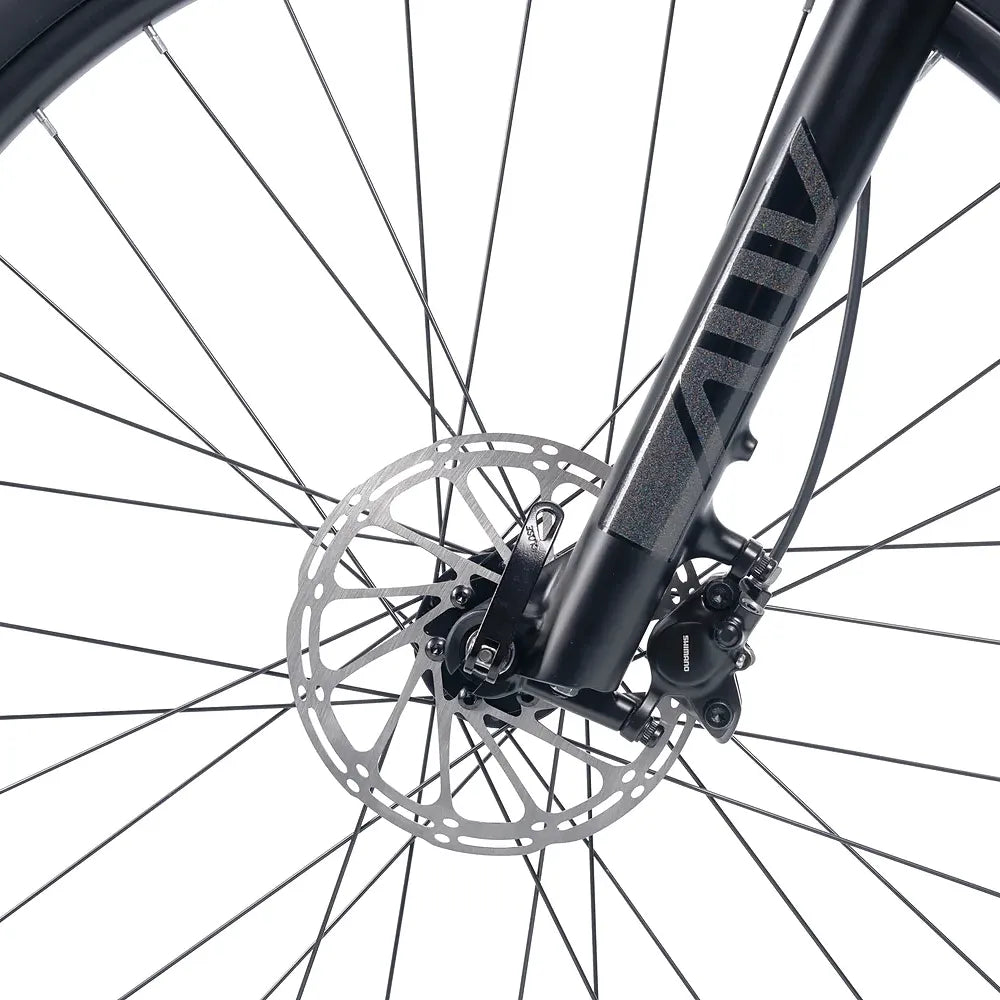

FRONT & REAR BRAKE: SHIMANO MT-200 HYDRAULIC 160mm
BRAKE LEVERS: SHIMANO MT-200
COMPONENTS
SEAT POST: SUNPEED XC50 ALUMINIUM POST 31.6*350mm
SEAT POST CLAMP: SUNPEED XC20 ALUMINIUM 34.9
SADDLE: K.SAN K775
HEADSET: NECO SEALED CARTRIDGE BEARINGS
STEM: SUNPEED AS-307

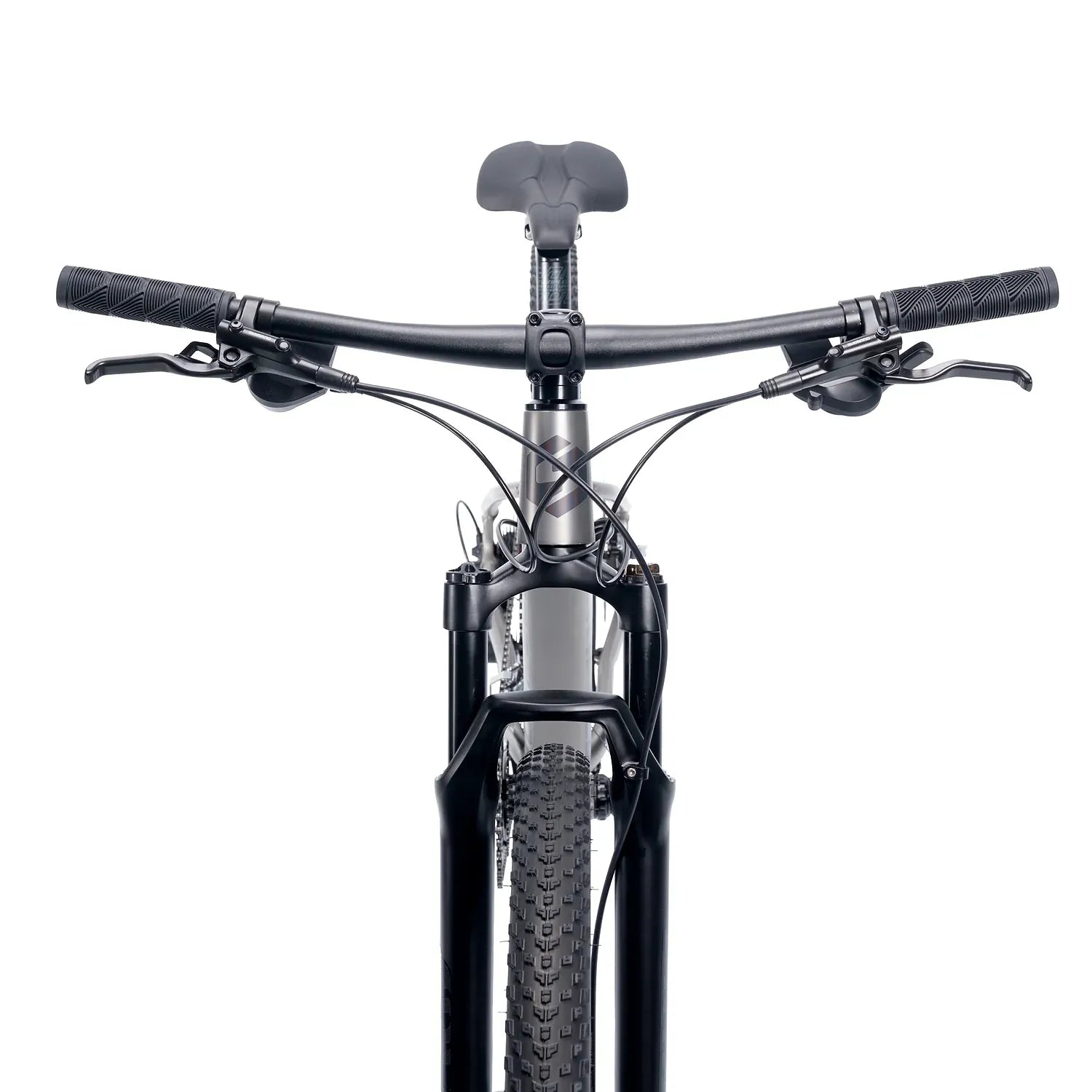

HANDLEBAR: SUNPEED XC50 ALUMINIUM 680mm
GRIPS: ODI LOCK ON GRIP
PEDALS: WELLGO ALUMINIUM V249D
SIZE CHART & WEIGHT
Wheel Size: 29″
(Frame: Height)
(XS) 13.5: 137-155cm
(S) 15.5: 152-168cm
(M) 17.5: 161-173cm
(L) 19.5: 176-188cm
NET WEIGHT: 12.8kg
